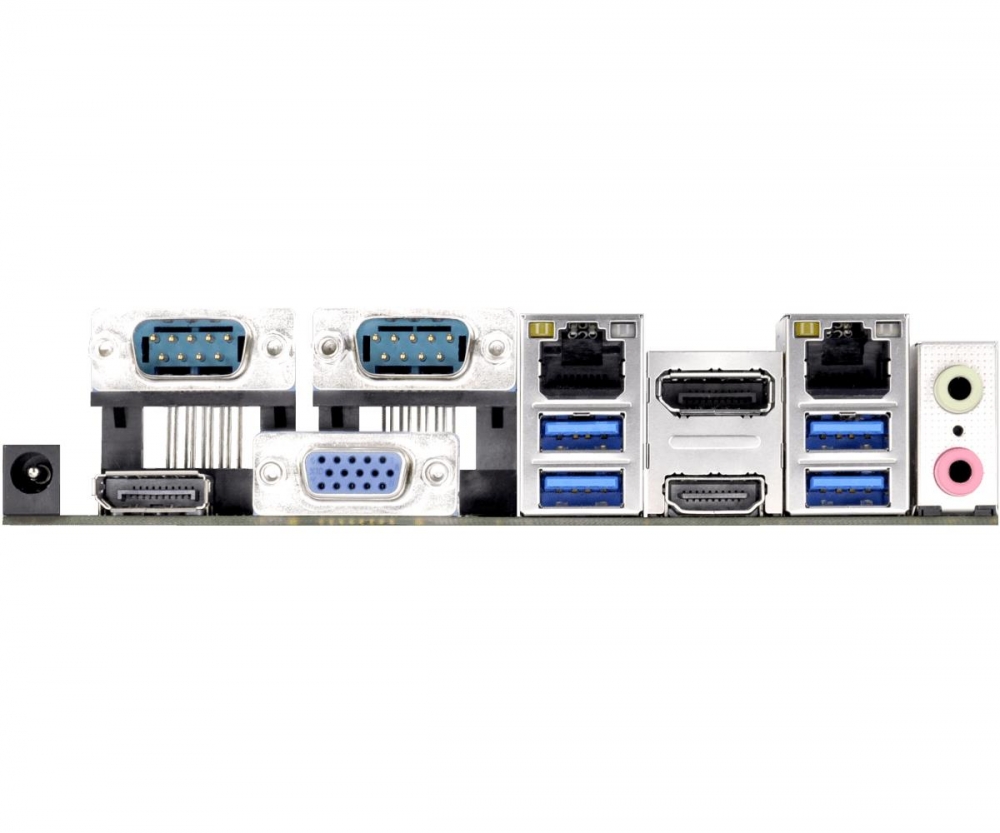

ASROCK IMB-180
Mini-ITX intel rPGA 947 (0ºC – 60ºC)- Socket rPGA 947 Intel® Core i7 / i5 / i3 / mobile processor (Haswell)
- Intel® QM87 Chipset
- Integrated Intel® HD Graphics Built-in Visuals
- Supports DDR3/DDR3L 1600MHz, 2 x SO-DIMM, up to 16GB system memory
- 2 x COM (RS-232/422/485), 4 x COM (RS-232)
- 1 x VGA, 1 x HDMI, 2 x DisplayPort, 24 bit Dual Channel LVDS
- 4 x USB 3.0, 8 x USB 2.0,4 x SATA3
- 1 x mini-PCIe, 1 x mSATA, 1 x PCIe (x16)
- Gigabit LAN : 1 x Intel® I217LM (with v-Pro support), 1 x Intel® I210
- 1 x TPM Header
Digital Signage ca / Gaming ca
Kiosk ca
-
DC
-
Display Port
-
HDMI
-
Intel
-
Interfície
-
LAN
-
Linux
-
Serie
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
Processor system
|
CPU |
Socket rPGA947 for Intel Core i7/i5/i3/mobile processor (Haswell) |
|
Chipset |
QM87 |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255 Sec/Min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
1 (Full size) |
|
mSATA |
1 (Full size) |
|
PCIe |
1 (x16) with Riser card extend to x8+x8 or x8+x4+x4 |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
Dual Channel DDR3 1066/1333/1600 MHz SDRAM 2 x SO-DIMM |
|
Max. |
16GB |
|
Storage |
SATA2 (3.0Gb/s), SATA3 (6.0Gb/s), Supports RAID 0/1/5/10 |
Graphics
|
Controller |
Intel HD Graphics (By CPU) |
|
Max. Resolution |
2560 x1600 |
Ethernet
Rear I/O
|
VGA |
1 |
|
HDMI |
1 |
|
DVI-I/D |
- |
|
Display Port |
2 |
|
Ethernet |
2 |
|
USB |
4 x USB 3.0 compliant |
|
Audio |
2 (Mic-In, Line-Out) |
|
Serial |
2 (RS-232/422/485) |
Internal connector
|
USB |
8 (4 x USB Header 2.54mm pitch, ) 1 Vertical Type A USB Connector |
|
LVDS/Inverter |
24 bit dual channel LVDS |
|
Serial |
4 (RS-232) |
|
SATA |
4 x SATA3 (6.0Gb/s), Support RAID 0/1/5/10 |
|
mSATA |
1 |
|
Mini-PCIe |
1 |
|
GPIO |
4 x GPI + 4 x GPO |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
DC-in 12V~19V |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
