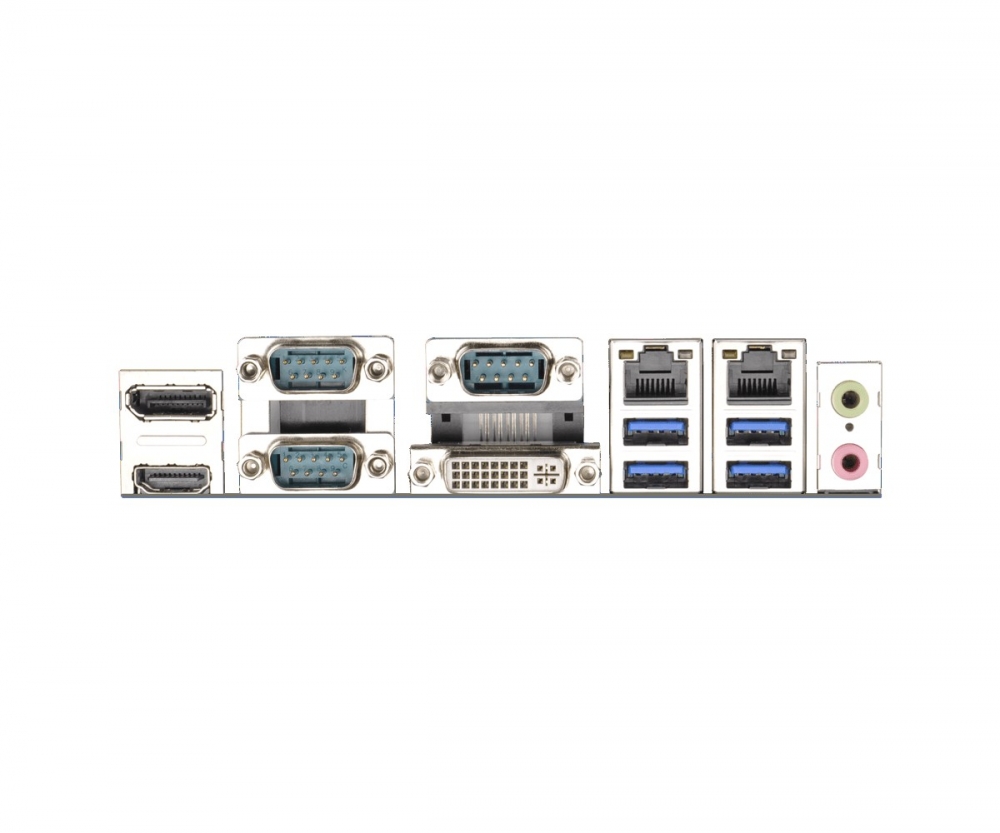

ASROCK IMB-181-D
Mini-ITX intel LGA1150 (0ºC – 60ºC)- Socket LGA1150 for Intel® Core i7 / i5 / i3 / Celeron® (Haswell)
- Intel® Q87 Chipset
- Integrated Intel® HD Graphics Built-in Visuals
- Supports DDR3 1600MHz, 2 x SO-DIMM, up to 16GB system memory
- 3 x COM (RS-232/422/485), 3 x COM (RS-232)
- 1 x VGA, 1 x HDMI, 1 x 24 bit Dual Channel DisplayPort
- 4 x USB 3.0, 8 x USB 2.0,4 x SATA3
- 1 x mini-PCIe, 1 x PCIe (x16),
- Gigabit LAN : 1 x Intel® I217LM (with v-Pro support), 1 x Intel® I210
- 1 x TPM Header
/ Gaming en
Kiosk en
-
DC
-
Display Port
-
DVI
-
HDMI
-
Intel
-
Interface
-
LAN
-
Linux
-
Serial
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
Processor system
|
CPU |
Socket LGA1150 for Intel Core i7/i5/i3/Celeron (Haswell) |
|
Chipset |
Q87 |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255 Sec/Min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
1 (full size) shared with m-SATA |
|
mSATA |
1 (shared with mini-PCIe) |
|
PCIe |
1 (x16) |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
Dual Channel DDR3 1066/1333/1600 MHz SDRAM 2 x SO-DIMM |
|
Max. |
16GB |
|
Storage |
SATA2 (3.0Gb/s), SATA3 (6.0Gb/s), Supports RAID 0/1/5/10 |
Graphics
|
Controller |
Intel HD Graphics (By CPU) |
|
Max. Resolution |
2560 x 1 600 |
Ethernet
Rear I/O
|
VGA |
- |
|
HDMI |
1 |
|
DVI-I/D |
1 (DVI-I) |
|
Display Port |
1 |
|
Ethernet |
2 |
|
USB |
4 x USB 3.0 compliant |
|
Audio |
2 (Mic-in Line- out) |
|
Serial |
3 (RS-232/422/485) |
Internal connector
|
USB |
8 (4 x USB Header 2.54mm pitch) |
|
LVDS/Inverter |
- |
|
Serial |
3 (RS-232) |
|
SATA |
4 x SATA3 (6.0Gb/s), Support RAID 0/1/5/10 |
|
mSATA |
1 (shared) |
|
Mini-PCIe |
1 (shared) |
|
GPIO |
4 x GPI + 4 x GPO |
|
SATA PWR |
- |
|
SIM |
- |
Power requirement
|
Power Input |
ATX PWR (4 + 24) |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
