Asrock IMB-183
Mini-ITX intel LGA1150 (0ºC – 60ºC)- Socket LGA1150 for Intel® Core i7 / i5 / i3 / Celeron® (Haswell)
- Intel® H81 Chipset
- Integrated Intel® HD Graphics Built-in Visuals
- Supports DDR3 1600MHz, 2 x SO-DIMM, up to 16GB system memory
- 1 x COM (RS-232/422/485), 3 x COM (RS-232)
- 1 x DVI, 1 x HDMI, 1 x 24 bit Dual Channel LVDS
- 2 x USB 3.0, 6 x USB 2.0, 2 x SATA3
- 1 x mini-PCIe, 1x mSATA, 1 x PCIE (x4)
- 1 x Intel® I217V
- 1 x TPM Header
Digital Signage ca / Kiosk ca
-
DC
-
DVI
-
HDMI
-
Intel
-
LAN
-
Linux
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
Processor system
|
CPU |
Socket LGA1150 for Intel Core i7/i5/i3/Celeron (Haswell) |
|
Chipset |
H81 |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255 Sec/Min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
1 (Half Size + USB 2.0) |
|
mSATA |
1 |
|
PCIe |
1 (x4) |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
Dual Channel DDR3 1066/1333/1600 MHz SDRAM 2 x SO-DIMM |
|
Max. |
16GB |
|
Storage |
SATA3 (6.0Gb/s) |
Graphics
|
Controller |
Intel HD Graphics (By CPU) |
|
Max. Resolution |
4096x2304 |
Ethernet
|
Controller |
Intel I217V |
|
Connector |
1 x RJ 45 |

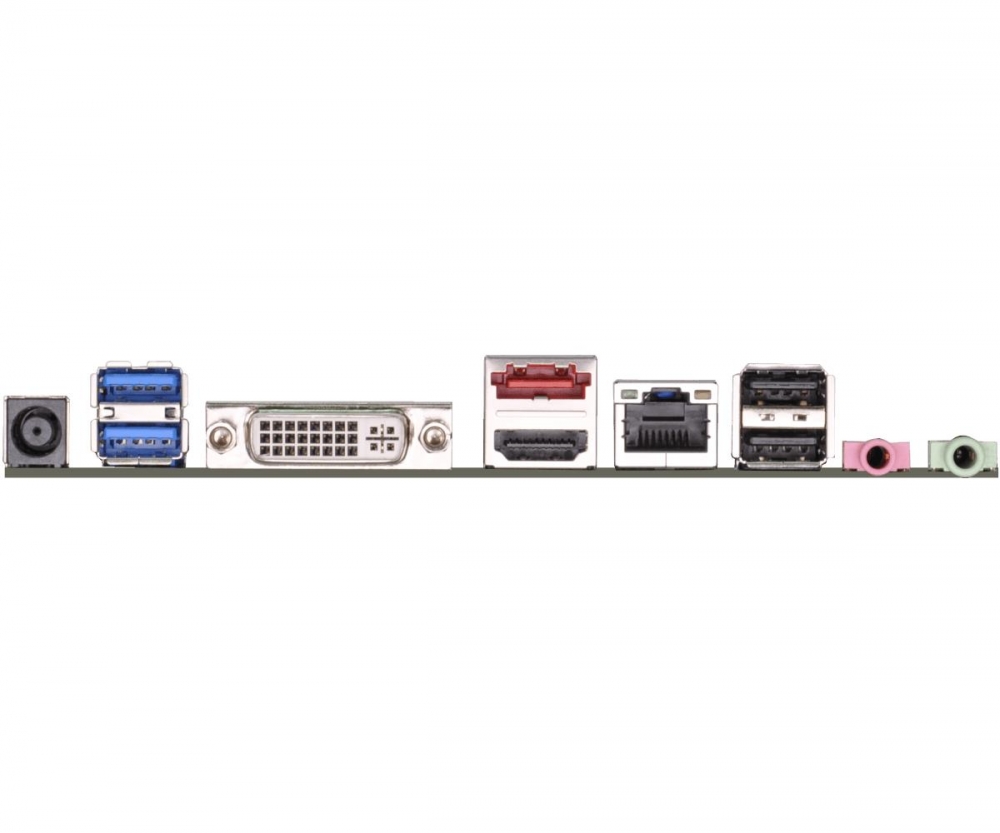

Rear I/O
|
VGA |
- |
|
HDMI |
1 |
|
DVI-I/D |
1(DVI-I) |
|
Display Port |
- |
|
Ethernet |
1 |
|
USB |
2 x USB 3.0 + 2 x USB2.0 compliant |
|
Audio |
Mic-in Line- out |
|
Serial |
- |
Internal connector
|
USB |
4 (2 x USB Header 2.54mm pitch) |
|
LVDS/Inverter |
24 bit dual channel LVDS |
|
Serial |
4 ( 1 RS-232/422/485, 3 RS-232) |
|
SATA |
2 x SATA3 (6.0Gb/s) |
|
mSATA |
1 |
|
Mini-PCIe |
1 |
|
GPIO |
4 x GPI + 4 x GPO |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
DC 12-19 input |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
|
Format factor |
Mini-ITX |
|
Dimensions |
6.7-in x 6.7-in |
|
Weight |
- |
|
Construction |
- |
