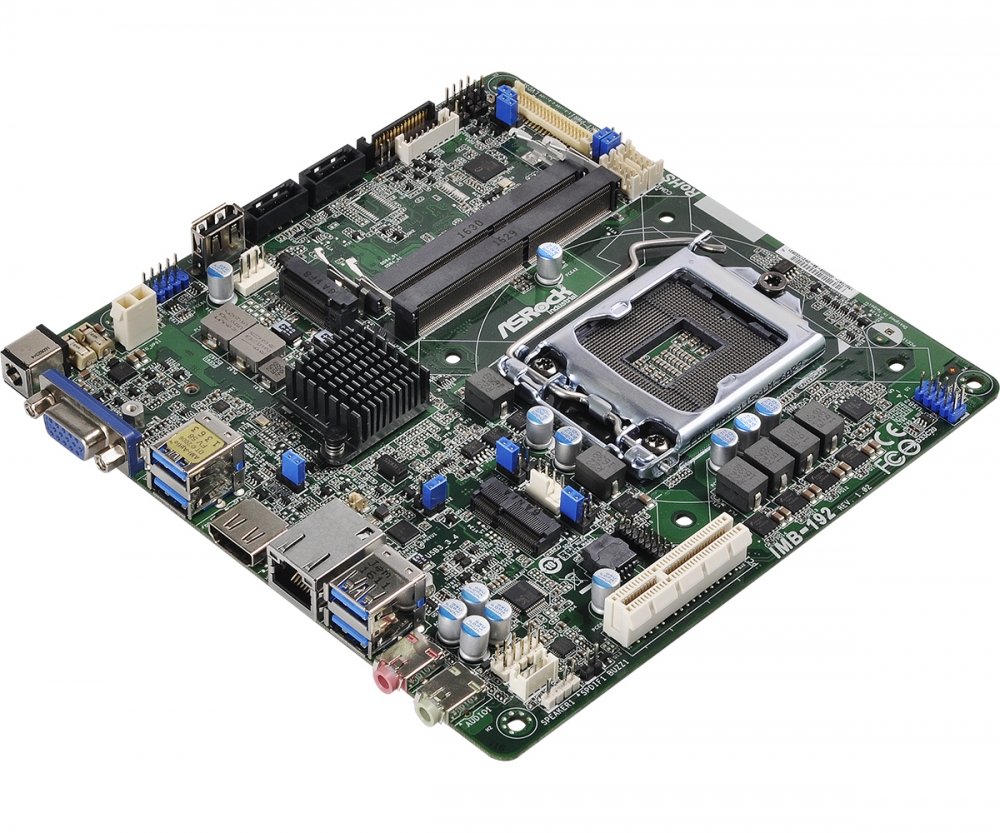

ASROCK IMB-192
Mini-ITX intel LGA1151 (0ºC ~ 60ºC)- Socket LGA1151 for Intel® Core i7 / i5 / i3 / Pentium® / Celeron® (Skylake)
- Integrated Intel® HD Graphics Built-in Visuals
- Supports DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
- 1 x VGA, 1 x HDMI, 1 x LVDS
- 4 x USB 3.0 , 5 x USB 2.0, 2 x SATA3
- 1 x M.2 (Key E), 1 M.2 (Key M)
- Gigabit LAN : 1 x Intel® LAN
- DC 19V power input
- TPM Header
/ Kiosk ca
-
DC
-
HDMI
-
Intel
-
LAN
-
Linux
-
Serie
-
USB
-
VGA
-
Windows
Specifications
Processor system
|
CPU |
Socket LGA1151 for Intel® Core i7/i5/i3/Pentium/Celeron (Skylake) |
|
Chipset |
H110 |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255sec/min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
- |
|
mSATA |
- |
|
PCIe |
1 x PCI Express 3.0 x 4 Slot |
|
Cfast |
- |
|
M.2 |
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module 1 x M.2 Socket (Key M), supports type 2242/2260 |
Memory
|
Technology |
Dual Channel DDR4 2133MHz 2 x SO-DIMM |
|
Max. |
32GB |
|
Storage |
SATA3 (6.0Gb/s) |
Graphics
|
Controller |
Intel® HD Graphics 510/530 |
|
Max. Resolution |
4096x2160 @ 24Hz |
Ethernet

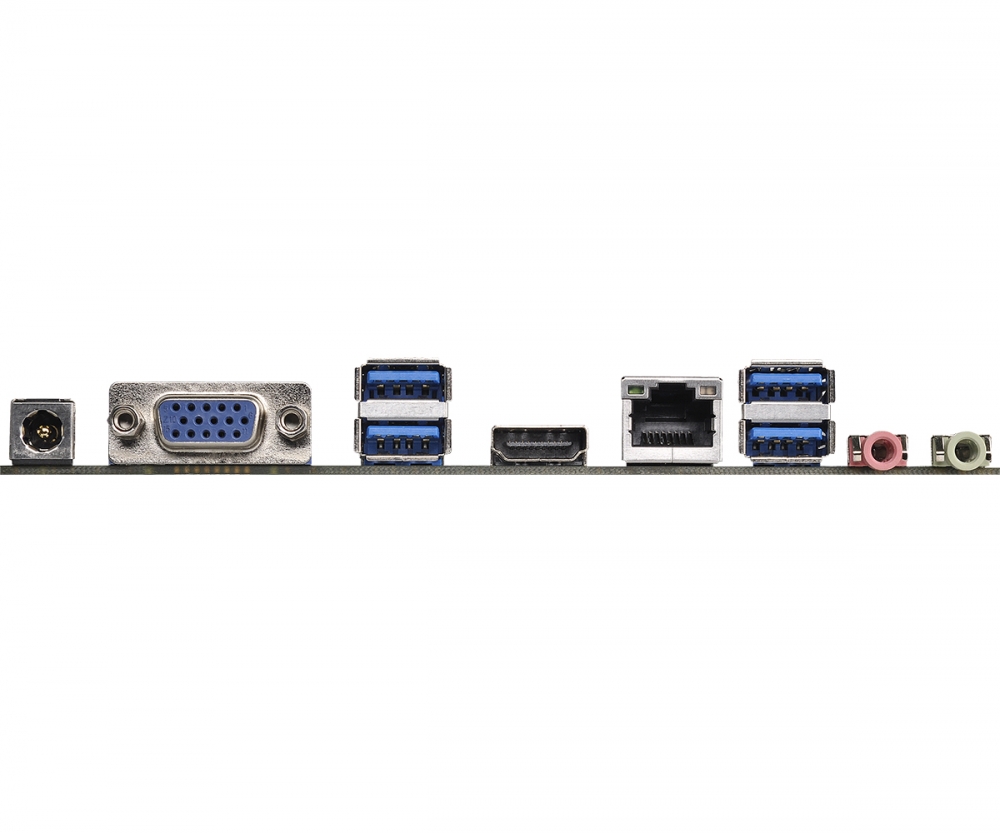

Rear I/O
|
VGA |
1 |
|
HDMI |
1 |
|
DVI-I/D |
- |
|
Display Port |
- |
|
Ethernet |
1 |
|
USB |
4 x USB3.0 |
|
Audio |
2 (Mic-in, Line-out) |
|
Serial |
- |
Internal connector
|
USB |
5 x USB 2.0 (2 x 2.54 pitch header , 1 x Type A) |
|
LVDS/Inverter |
1/1 |
|
Serial |
2 x 2.0 pitch header RS-232 |
|
SATA |
2 x SATA3 (6.0Gb/s) |
|
mSATA |
- |
|
Mini-PCIe |
- |
|
GPIO |
- |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
19V phone jack DC-In |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
