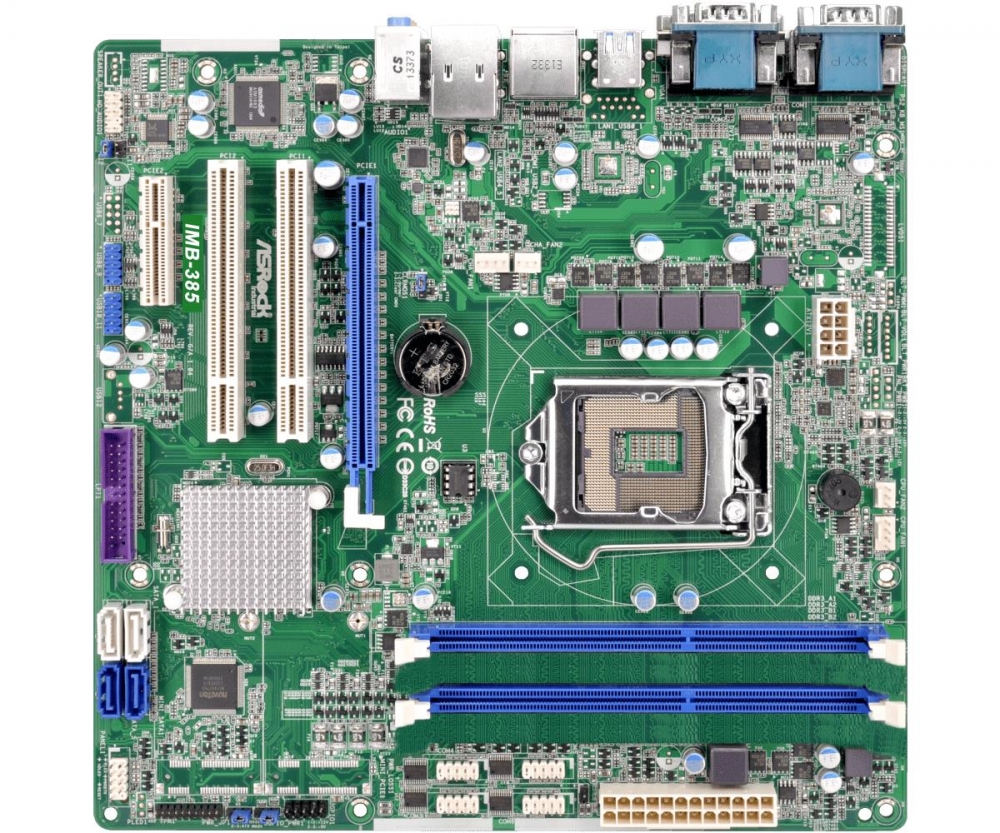

ASROCK IMB-385
Micro-ATX intel LGA1150 (0ºC ~ 60ºC)- Socket LGA1150 for Intel® Core i7 / i5 / i3 / Celeron® (Haswell)
- Intel® H81 Express Chipset
- Integrated Intel® HD Graphics Built-in Visuals
- Supports DDR3 1066/1333/1600MHz, 2 x Long-DIMM, up to 16GB system memory
- 2 x COM (RS-232/422/485), 4 x COM (RS-232)
- 1 x HDMI, 1 x VGA, 1 x DisplayPort
- 2 x USB 3.0, 6 x USB 2.0, 2 x SATA3, 2 x SATA2
- 2 x PCI, 1 x PCIe x16, 1 x PCIe x4
- Gigabit LAN : 1 x Intel® I217v (without v-Pro support)
- 1 x TPM Header
/ Kiosk en
-
DC
-
Display Port
-
HDMI
-
Intel
-
Interface
-
LAN
-
Serial
-
USB
-
VGA
Specifications
Processor system
|
CPU |
Socket LGA1150 for Intel® Core i7/i5/i3/Celeron (Haswell) |
|
Chipset |
H81 |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255 Sec/Min |
Expansion slot
|
PCI |
2 |
|
Mini-PCIe |
- |
|
mSATA |
- |
|
PCIe |
1 (x16)+ 1 (x4) |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
Dual Channel DDR3 1066/1333/1600 MHz SDRAM 2 x Long DIMM |
|
Max. |
16GB |
|
Storage |
2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s) |
Graphics
|
Controller |
Intel® HD Graphics (By CPU) |
|
Max. Resolution |
2560x1600 |
Ethernet

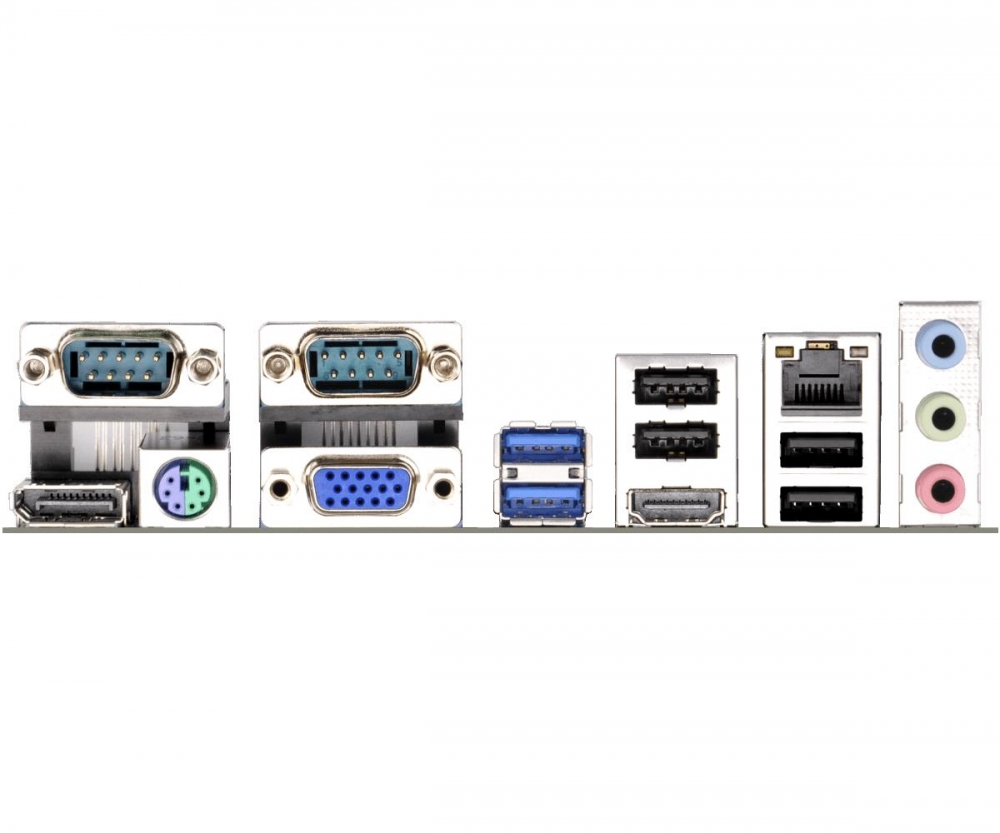

Rear I/O
|
VGA |
1 |
|
HDMI |
1 |
|
DVI-I/D |
- |
|
Display Port |
1 |
|
Ethernet |
1 |
|
USB |
6 (2 x USB 3.0 compliant, 4 x USB 2.0 compliant) |
|
Audio |
3 (Mic-In, Line-Out, Line-In) |
|
Serial |
2 (RS-232/422/485) |
Internal connector
|
USB |
2 * USB 2.0 headers |
|
LVDS/Inverter |
- |
|
Serial |
4 (RS-232) |
|
SATA |
2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s) |
|
mSATA |
- |
|
Mini-PCIe |
- |
|
GPIO |
4 x GPI + 4 x GPO |
|
SATA PWR |
- |
|
SIM |
- |
Power requirement
|
Power Input |
ATX PWR (8+24 pin) |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
