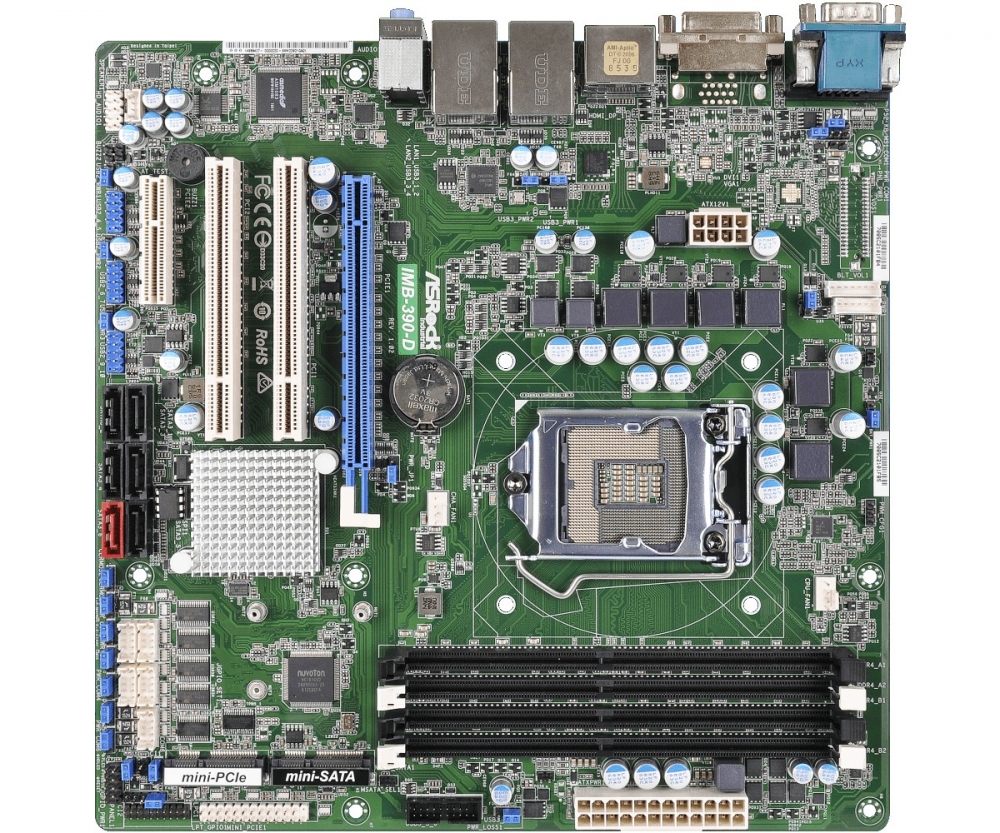

ASROCK IMB-390-D
Micro-ATX intel LGA1151 (0ºC ~ 60ºC)- Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S)
- Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4
- Supports Dual Channel DDR4 2133MHz, 4 x Long-DIMM, up to 64GB system memory

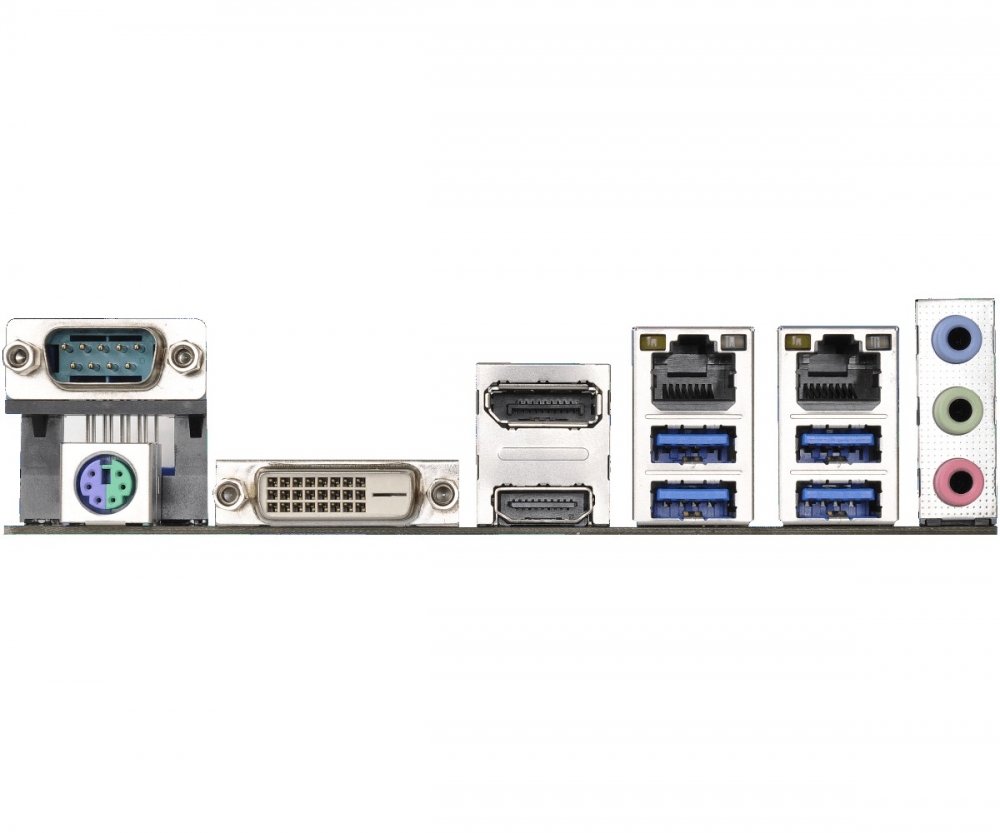

- 1 x HDMI, 1 x DisplayPort, 1 x DVI
- 6 x USB 3.0, 6 x USB 2.0, 6 x SATA3
- 1 x Mini-PCIe, 1 x PCIe x16, 2 x PCI, 1 x PCIe x4
- 2 x mSATA
- Gigabit LAN : 2 x Intel® LAN
- 1 x TPM 2.0 IC onboard
- ATX PWR Con (24+8-pin)
- Supports RAID 0, 1, 5, 10
/ Kiosk ca
-
DC
-
Display Port
-
DVI
-
HDMI
-
LAN
-
Serie
-
USB
-
VGA
-
Windows
Specifications
Processor system
|
CPU |
Socket LGA1151 for Intel® Core i7/i5/i3/Celeron(Skylake-S) |
|
Chipset |
Intel® Q170 |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255sec/min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
1 (half/full size, supports PCIe x1 and USB device) |
|
mSATA |
1 (full size, supports SATA and USB device) |
|
PCIe |
1 x PCIe x16, 2 x PCI, 1 x PCIe x4 slot |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
Dual Channel DDR4 2133MHz 4 x Long-DIMM |
|
Max. |
64GB |
|
Storage |
SATA3 (6.0Gb/s) |
Graphics
|
Controller |
Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4 |
|
Max. Resolution |
4096 x 2160@60Hz |
Ethernet
Processor system
|
CPU |
Socket LGA1151 for Intel® Core i7/i5/i3/Celeron(Skylake-S) |
|
Chipset |
Intel® Q170 |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255sec/min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
1 (half/full size, supports PCIe x1 and USB device) |
|
mSATA |
1 (full size, supports SATA and USB device) |
|
PCIe |
1 x PCIe x16, 2 x PCI, 1 x PCIe x4 slot |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
Dual Channel DDR4 2133MHz 4 x Long-DIMM |
|
Max. |
64GB |
|
Storage |
SATA3 (6.0Gb/s) |
Graphics
|
Controller |
Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4 |
|
Max. Resolution |
4096 x 2160@60Hz |
Ethernet
