ASROCK IMB-770

ATX intel LGA1155 (0ºC ~ 60ºC)

Socket LGA1155 for Intel^® Core i7 / i5 / i3 / Celeron^® (Ivy Bridge and Sandy Bridge)
Intel^® Q77 Chipset
Integrated Intel^® HD Graphics Built-in Visuals
Supports DDR3 1600MHz, 4 x Long-DIMM, up to 32GB system memory
2 x COM (RS-232/422/485), 4 x COM (RS-232)
1 x D-Sub, 1 x HDMI, 1 x DisplayPort
4 x USB 3.0, 9 x USB 2.0, 2 x SATA3, 2 x SATA2
4 x PCI, 1 x mini-PCIe, 1 x mSATA, 3 x PCIe (x16/x4/x1), 1 x CFast Card Socket
Gigabit LAN : 1 x Intel^® 82579LM, 1 x Intel^® 82583V
1 x TPM Header

/
Digital Signage ca

Gaming ca

Kiosk ca

Specifications

Processor system

CPU	Socket LGA1155 for Intel® Core i7 / i5 / i3 / Celeron® (Sandy Bridge and Ivy Bridge)
Chipset	Q77
BIOS/OS Support	UEFI
Watchdog	0,1,2…255 Sec/Min

Expansion slot

PCI	4
Mini-PCIe	1 (Full Size)
mSATA	1
PCIe	1 (x16) (Ivy Bridge: Gen3; Sandy Bridge: Gen2) + 1 (x1) + 1 (x4)
Cfast	1
M.2	-

Memory

Technology

Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM

4 x Long-DIMM

Max.

32GB

Storage

SATA2 (3.0Gb/s), SATA3 (6.0Gb/s), Supports RAID 0/1/5/10

Graphics

Controller	Intel® HD Graphics (By CPU)
Max. Resolution	2560 x1 600

Ethernet

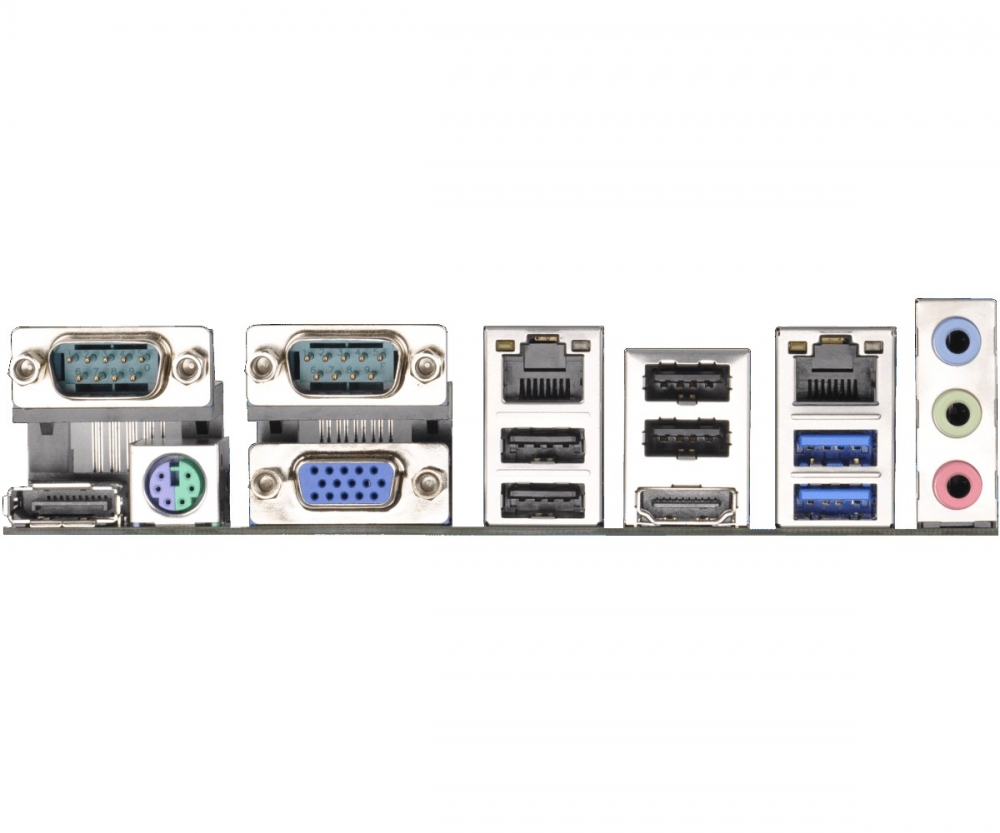

Rear I/O

VGA	1
HDMI	1
DVI-I/D	-
Display Port	1
Ethernet	2
USB	6 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant)
Audio	3 (Mic-in, Line-in, Line-out)
Serial	2 x COM (RS-232/422/485)
mSATA	-
Mini-PCIe	-
GPIO	-
SATA PWR	-
SIM	-

Internal connector

USB	7 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant) 1 Vertical Type A USB Connector
LVDS/Inverter	-
Serial	4 (RS-232)
SATA	2 x SATA2 (3.0Gb/s), 2 x SATA3 (6.0Gb/s), Support RAID 0/1/5/10
mSATA	1
Mini-PCIe	1 (Supports half-size card)
GPIO	4 x GPI + 4 x GPO
SATA PWR	2
SIM	-

Power requirement

Power Input

ATX PWR Con (8+24)

Environment

Mechanical
