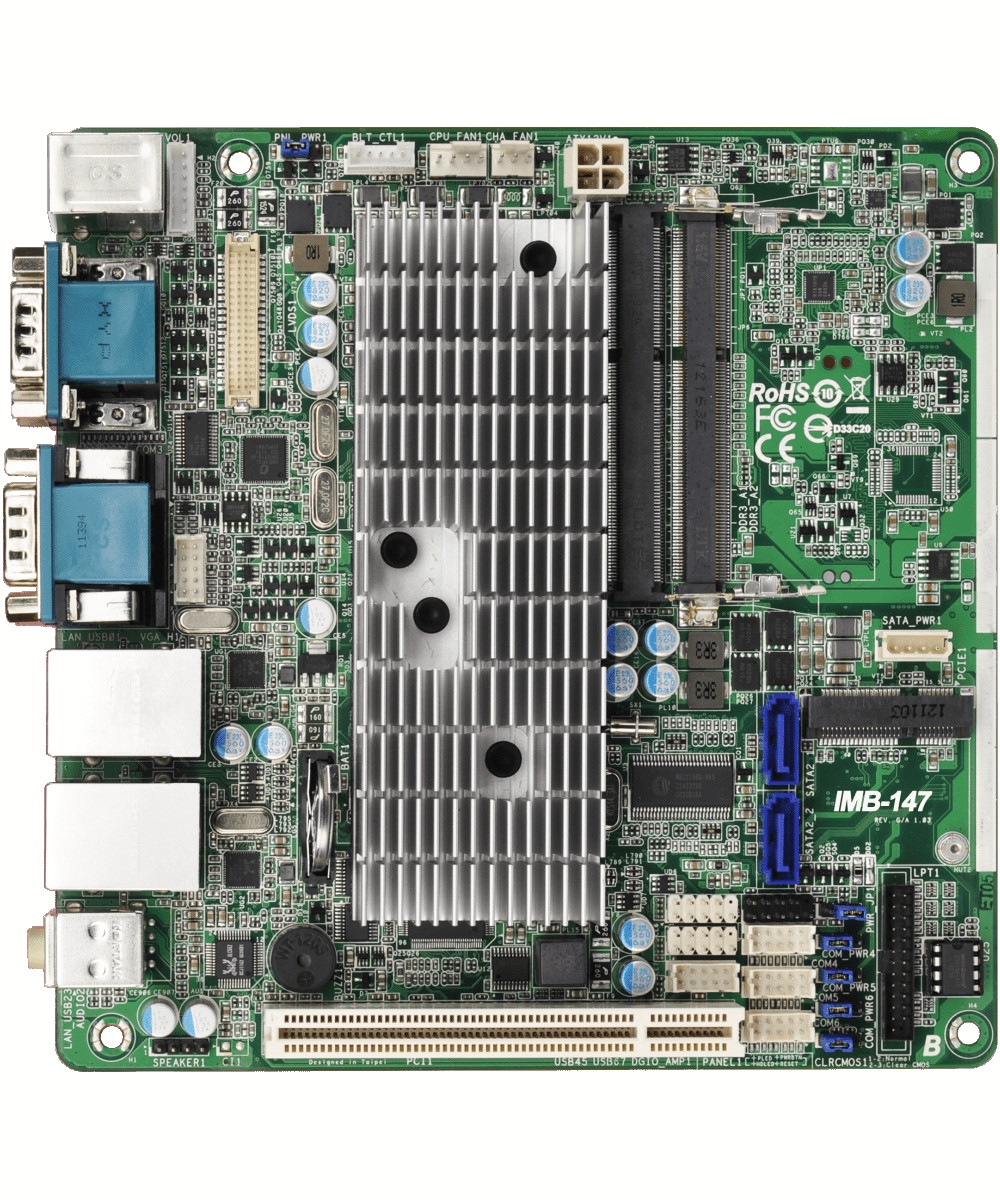

IMB-147 Series
Mini-ITX intel CedarView D2550/N2600/N2800 (0ºC – 60ºC)- Intel® Dual-Core Atom™ CedarViewProcessor D2550/N2600/N2800
- Intel® NM10 Express Chipset
- Integrated Intel® PowerVR SGX545, DirectX 9.0, Pixel Shader 3.0
- Supports DDR3 1066MHz, 2 x SO-DIMM, up to 4GB system memory
- 1 x COM (RS-232/422/485), 5 x COM (RS-232)
- 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
- 8 x USB 2.0, 2 x SATA2
- 1 x PCI, 1 x mini-PCIe
- Gigabit LAN : 2 x Realtek RTL8111E-VL
Digital Signage ca / Kiosk ca
-
DC
-
HDD
-
HDMI
-
Intel
-
Interfície
-
LAN
-
SSD
-
USB
-
VGA
Specifications
Processor system
|
CPU |
Intel® Dual-Core AtomTM CedarView Processor D2550/ N2600/N2800 Supports Hyper-Threading Technology |
|
Chipset |
NM10 |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255sec/min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
1 (Half Size) |
|
mSATA |
- |
|
PCIe |
- |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
Single Channel DDR3 800/1066 MHz SDRAM D2550/N2800: 2 x SO-DIMM, N2600: 1 x SO-DIMM |
|
Max. |
D2550/N2800: 4GB, N2600: 2GB |
|
Storage |
SATA2 (3.0Gb/s) |
Graphics
|
Controller |
Intel® PowerVR SGX545, Support Directx9 compliant Pixel Shader v3.0 and OGL 3.0 |
|
Max. Resolution |
1920 x 1200@60Hz |
Ethernet

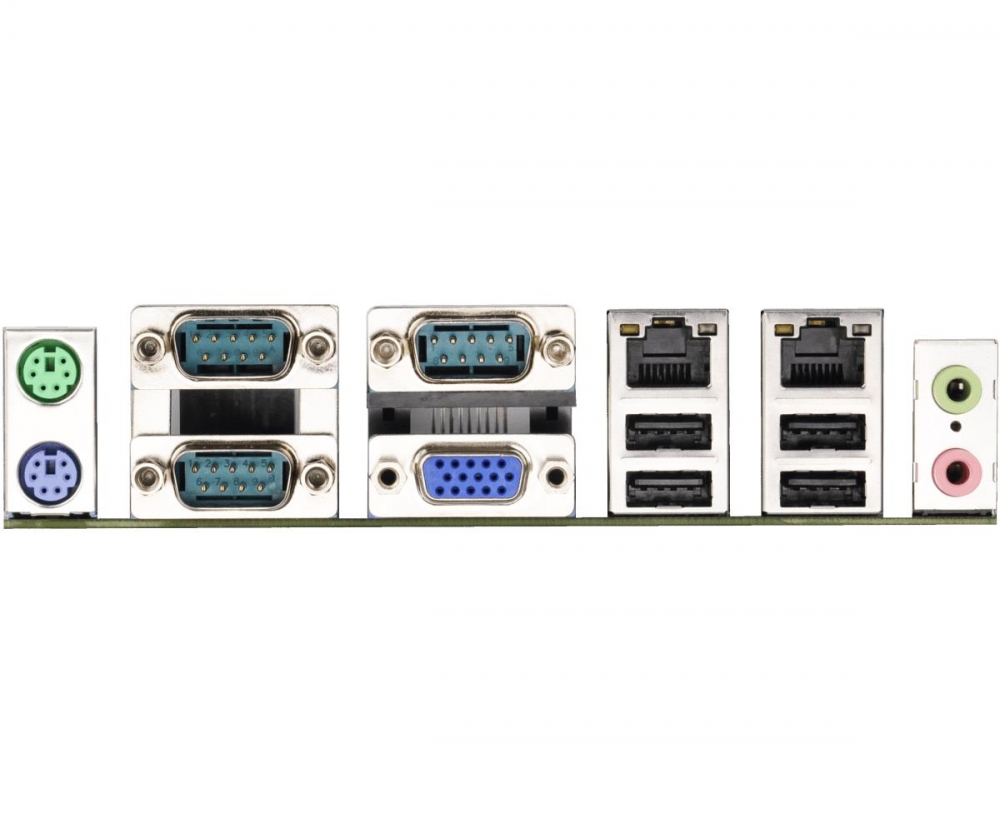

Rear I/O
|
VGA |
1 |
|
HDMI |
- |
|
DVI-I/D |
- |
|
Display Port |
- |
|
Ethernet |
2 |
|
USB |
4 (USB 2.0 compliant) |
|
Audio |
2 (Mic-in, Line-out) |
|
Serial |
1 (RS-232/422/485) + 2 (RS-232) |
Internal connector
|
USB |
4 (USB 2.0 compliant) |
|
LVDS/Inverter |
1/1 |
|
Serial |
3 (RS-232) |
|
SATA |
2 x SATA2 (3.0Gb/s) |
|
mSATA |
- |
|
Mini-PCIe |
1 |
|
GPIO |
2 x GPI + 2 x GPO |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
12V DC-In (4-pin ATX PWR Con) |
Environment
|
Operating temp. |
ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
