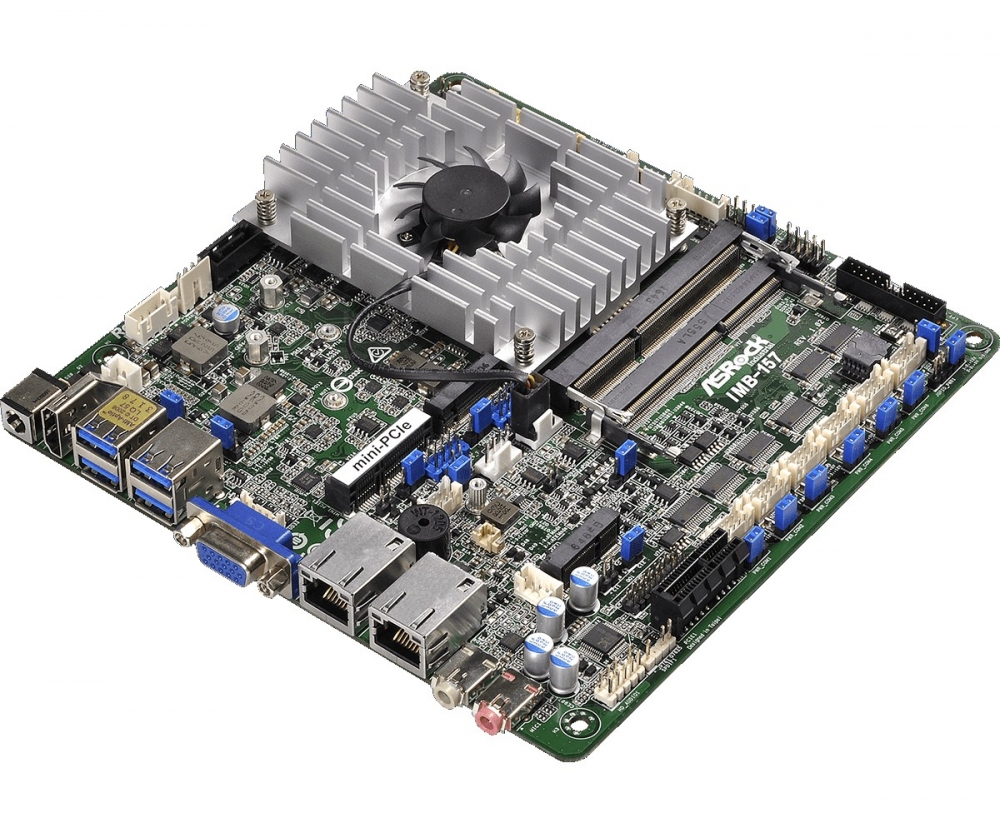

IMB-157
Mini-ITX intel Apollo Lake SoC BGA1296 (0ºC – 60ºC)- BGA1296 for Intel® Apollo Lake SoC
- IMB-157D (N4200)
- IMB-157L (N3350)
- IMB-157M (E3940) - Intel® HD Graphics
- Supports Dual Channel DDR3L 1867MHz, 2 x SO-DIMM, up to 16GB system memory
- 1 x VGA, 1 x HDMI, 1 x eDP or LVDS (Jumper Switch
- 4 xUSB 3.0, 4 x USB 2.0, 1 x SATA3
- 1 x Mini-PCIe, 1 x PCIe x1 Slot ,1 x M.2 (KEY E), 1 x M.2 (KEY M
- Gigabit LAN : 2 x Realtek LAN
- 1 x TPM Header
- +12V or +19V~+24V DC-In (DC Jack / 4-pin ATX PWR Con)
/ Gaming en
-
DC
-
HDMI
-
Intel
-
Interface
-
LAN
-
Linux
-
Serial
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
Processor system
|
CPU |
BGA1296 for Intel® Apollo Lake SoC |
|
Chipset |
N/A |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255sec/min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
1 (full/half size) with PCIe x1 and USB 2.0 (Shared) |
|
mSATA |
- |
|
PCIe |
1 x PCIe x1 slot |
|
Cfast |
- |
|
M.2 |
1 x M.2 (KEY M, 2242/2260) with SATA III signal for SSD 1 x M.2 (KEY E, 2230) with PCIe x1 and USB 2.0 (Shared) for Wireless |
Memory
|
Technology |
Dual Channel DDR3L 1867MHz |
|
Max. |
16GB |
|
Storage |
2 x SO-DIMM |
Graphics
|
Controller |
Intel® HD Graphics |
|
Max. Resolution |
4096 x 2160@60Hz |
Ethernet
|
Controller |
2 x Realtek RTL8111G |
|
Connector |
2 x RJ45 |

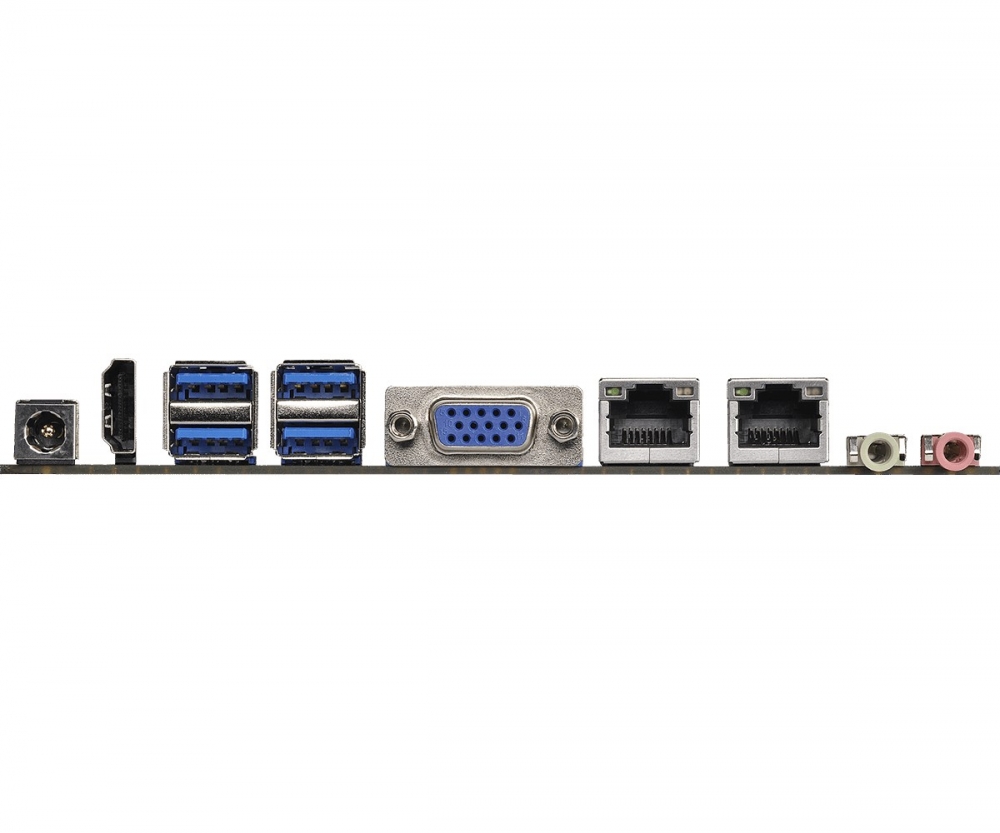

Rear I/O
|
VGA |
1 |
|
HDMI |
1 |
|
DVI-I/D |
- |
|
Display Port |
- |
|
Ethernet |
2 |
|
USB |
4 x USB 3.0 |
|
Audio |
2 (Mic-in, Line-out) |
|
Serial |
- |
Internal connector
|
USB |
4 x USB 2.0 (2 x 2.54 pitch header) |
|
LVDS/Inverter |
1/1 |
|
Serial |
6 x COM (COM1and COM2 with RS232/422/485 support |
|
SATA |
1 |
|
mSATA |
- |
|
Mini-PCIe |
1 |
|
GPIO |
8 x GPI + 8 x GPO (shared with LPT header) |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
+12V or +19V~+24V DC-In (DC Jack / 4-pin ATX PWR Con) |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
