IMB-A180

Mini-ITX AMD Embedded G-Series SOC (0ºC – 60ºC)

AMD Embedded G-Series SOC processor(s)
Supports DDR31600MHz (GX-420CA/GX-415GA), DDR3 1333MHz (GX-210HA)
1 x VGA, 1 x HDMI
24 bit dual channel LVDS
6 x COM ports, 6 x USB 2.0, 2 x USB 3.0
1 x PCIex4, 1x SATA 3.0, 1 x mSATA
Dual Gbe LAN: 1 x Realtek RTL8111E, 1 x Realtek RTL8111DP to support Dash Function
1 x TPM header

Digital Signage ca /
Gaming ca

Kiosk ca

Specifications

Processor system

CPU	AMD-- Embedded G-Series SOC processor(s) GX-420CA: 25W 4Core (2.0G Hz) GX-415GA: 15W 4Core (1.5G Hz) GX-210HA: 9W 2Core (1.0G Hz)
Chipset	SOC
BIOS/OS Support	UEFI
Watchdog	0,1,2…255 Sec/Min

Expansion slot

Memory

Technology

Single Channel Up to DDR3 1600 MHz (GX-420CA / GX-415GA)

Single Channel Up to DDR3 1333MHz (GX-210HA)

2 x SO-DIMM

Max.

16GB

Storage

SATA3 (6.0Gb/s)

Graphics

Controller	by SOC
Max. Resolution	--

Ethernet

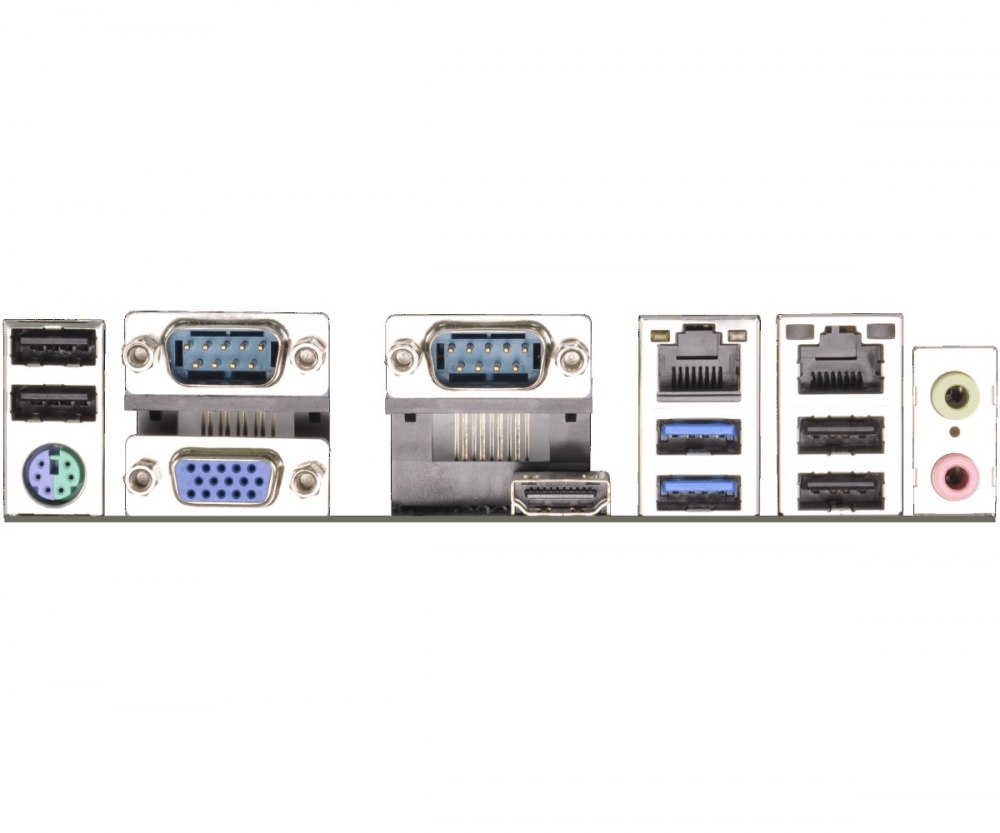

Rear I/O

VGA	1
HDMI	1
DVI-I/D	-
Display Port	-
Ethernet	2
USB	6 (4 x USB 2.0 compliant, 2 x USB 3.0 compliant)
Audio	2 (Mic-in, Line-out)
Serial	2 (RS232/422/485)

Internal connector

USB	2 x USB2.0 port (by Header), 1 x USB Type A Con
LVDS/Inverter	YES (option)
Serial	4 x RS232 and 4x (1x3) Header to offer PWR select for 2 rear and 2 internal
SATA	1 x SATA3, 1 x m-SATA
mSATA	1
Mini-PCIe	1 (half size)
GPIO	4 x GPI + 4 x GPO
SATA PWR	-
SIM	-

Power requirement

Power Input

20-pin ATX PWR con

Environment

Mechanical
