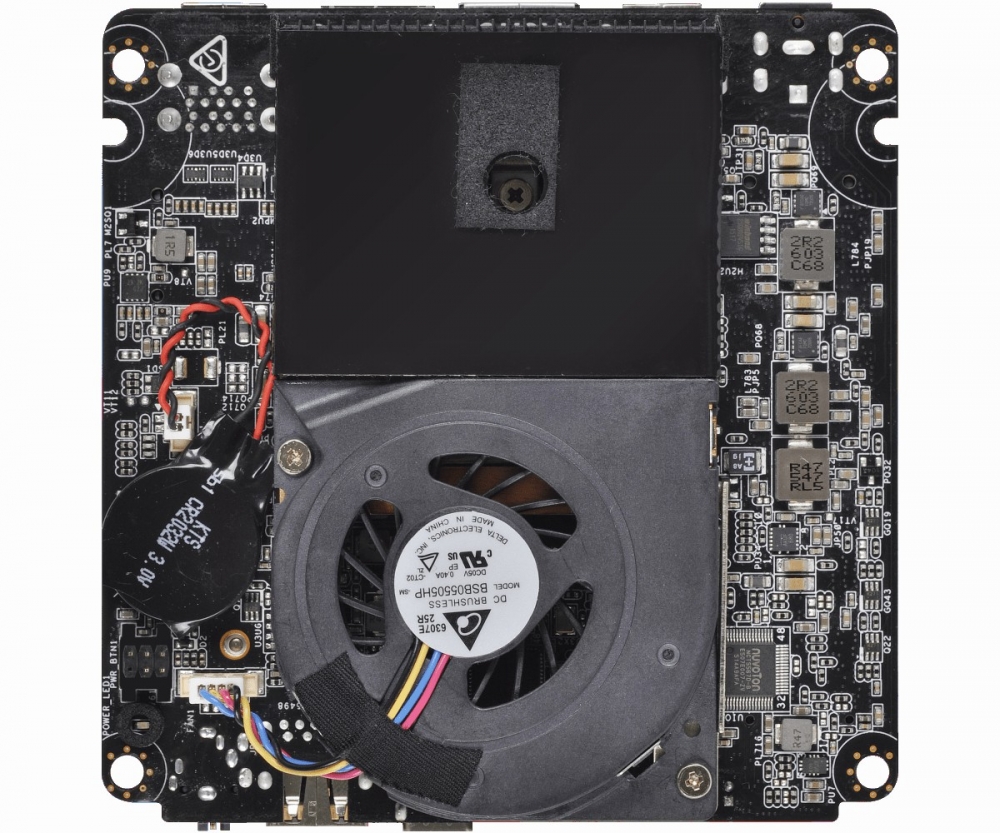

NUC-6300U
104 x 102mm intel Skylake-U SoC (0ºC – 60ºC)- Intel® Skylake-U SoC
- Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
- 2 x HDMI, 1 x DP
- Supports Dual Display (HDMI2 + DP or HDMI1 + HDMI2)
- 3 x USB 3.0, 1 x USB 3.1 (Type C), 1 x IR
- Gigabit LAN : 1 x Intel® i219LM with vPro & TPM (NUC-6300U)
- 19V DC-in
Este modelo pue
/ Kiosk en
-
DC
-
Display Port
-
HDMI
-
Intel
-
Interface
-
LAN
-
Linux
-
SSD
-
USB
-
Wifi
-
Windows
Specifications
Processor system
|
CPU |
Intel® 6th Gen Core U Processor ( Core i5-6300U) |
|
Chipset |
(By CPU) |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
- |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
- |
|
mSATA |
- |
|
PCIe |
- |
|
Cfast |
- |
|
M.2 |
For WIFI: 1 (TYPE 2230) For SSD: 1 (TYPE 2260) |
Memory
|
Technology |
Dual Channel DDR4 2133 MHz 2 x SO-DIMM |
|
Max. |
32 GB |
|
Storage |
SATA3 (6.0Gb/s) |
Graphics
|
Controller |
Intel® HD Graphics 520 |
|
Max. Resolution |
4096x2160@60Hz |
Ethernet
Rear I/O
|
VGA |
- |
|
HDMI |
2 |
|
DVI-I/D |
- |
|
Display Port |
1 |
|
Ethernet |
1 |
|
USB |
4 (3 x USB 3.0 compliant, 1 x USB 3.1 Type C) |
|
Audio |
1 (Mic-in, Line-out) |
|
Serial |
- |
Internal connector
|
USB |
- |
|
LVDS/Inverter |
- |
|
Serial |
- |
|
SATA |
1 x SATA3 ( 6.0Gb/s) |
|
mSATA |
- |
|
Mini-PCIe |
- |
|
GPIO |
- |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
19V / 65W DC-In (DC Jack) |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
|
|
Humidity |
|
Mechanical
