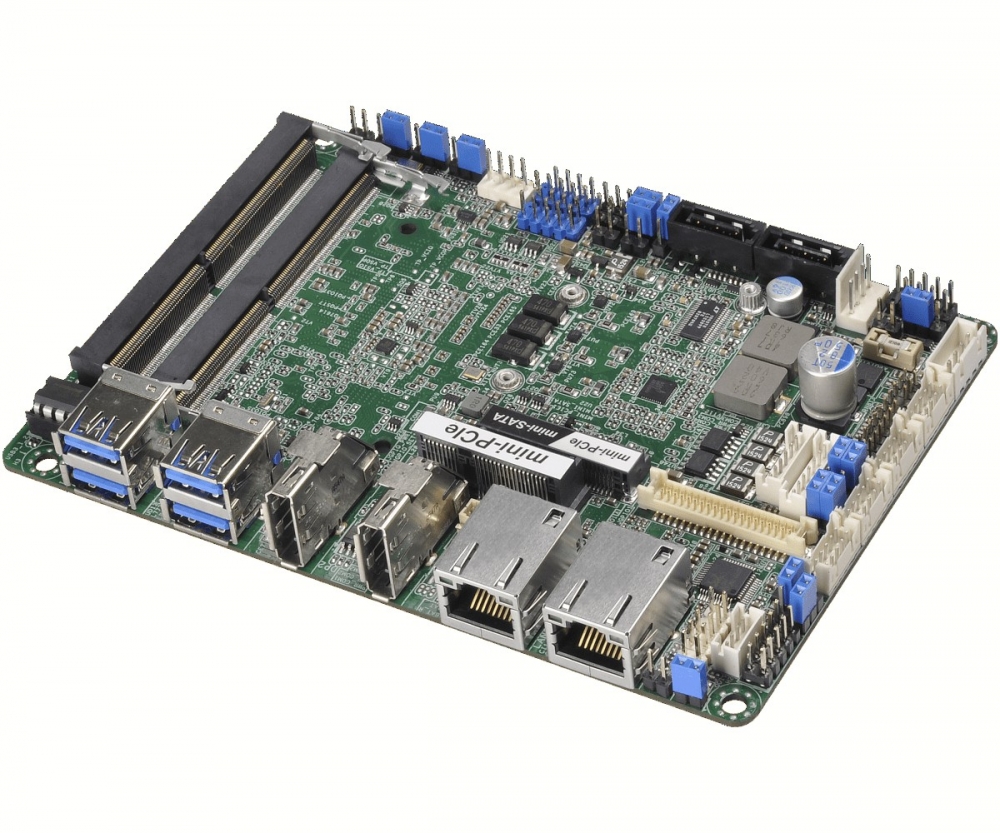

SBC-330
3.5" SBC intel Skylake-U SoC BGA1356 (0ºC - 60ºC)- BGA1356 for Intel® Skylake-U SoC
- SBC-330P (i7-6600U)
- SBC-330M (i5-6300U)
- SBC-331V (i3-6100U) - Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4
- Supports DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
- 2 x DP1.2, 1 x LVDS
- 4 x USB 3.0, 4 x USB 2.0, 2 x SATA3
- 1 x mini-PCIe, 1 x Mini-PCIe / MSATA colay
- Gigabit LAN : 2 x IntelLAN
- DC 12-36V power inp
Digital Signage ca / Gaming ca
Kiosk ca
-
DC
-
Display Port
-
Intel
-
Interfície
-
LAN
-
USB
-
Wifi
Specifications
Processor system
|
CPU |
BGA1356 for Intel® Core i7/i5 (Skylake-U) |
|
Chipset |
(by CPU) |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255sec/min |
Expansion slot
|
PCI |
|
|
Mini-PCIe |
1 x mini-PCIe (half/full/ size, PCIex1 + USB2.0) 1 x mini-PCIe (full size, shared with SATA, + USB2.0) |
|
mSATA |
- |
|
PCIe |
- |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
2 x Dual Channel DDR4 2133MHz SO-DIMM |
|
Max. |
32GB |
|
Storage |
SATA3 (6.0Gb/s) |
Graphics
|
Controller |
Intel® Gen9 Intel Graphics DX 11/12, OGL4.3/4.4 |
|
Max. Resolution |
4096 x 2160@60Hz |
Ethernet

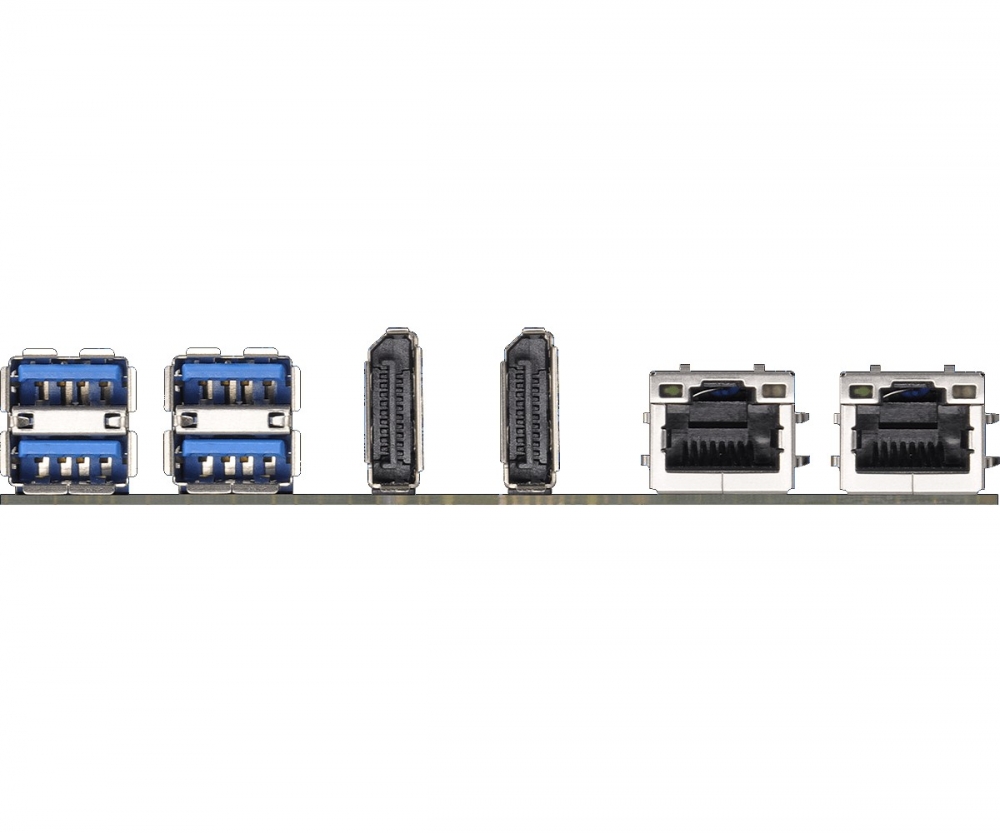

Rear I/O
|
VGA |
- |
|
HDMI |
- |
|
DVI-I/D |
- |
|
Display Port |
2 x DP1.2 |
|
Ethernet |
2 |
|
USB |
4 x USB3.0 |
|
Audio |
- |
|
Serial |
- |
|
mSATA |
- |
|
Mini-PCIe |
- |
|
GPIO |
- |
|
SATA PWR |
- |
|
SIM |
- |
Internal connector
|
USB |
4 x USB 2.0 (2 x 2.54 pitch header) |
|
LVDS/Inverter |
1/1 |
|
Serial |
4 x 2.0 pitch header RS-232 (COM1 support RS-232/422/485) |
|
SATA |
2 x SATA3 (6.0Gb/s) |
|
mSATA |
- |
|
Mini-PCIe |
- |
|
GPIO |
4 x GPI + 4 x GPO |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
12 / 19~36V phone jack DC-In |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
