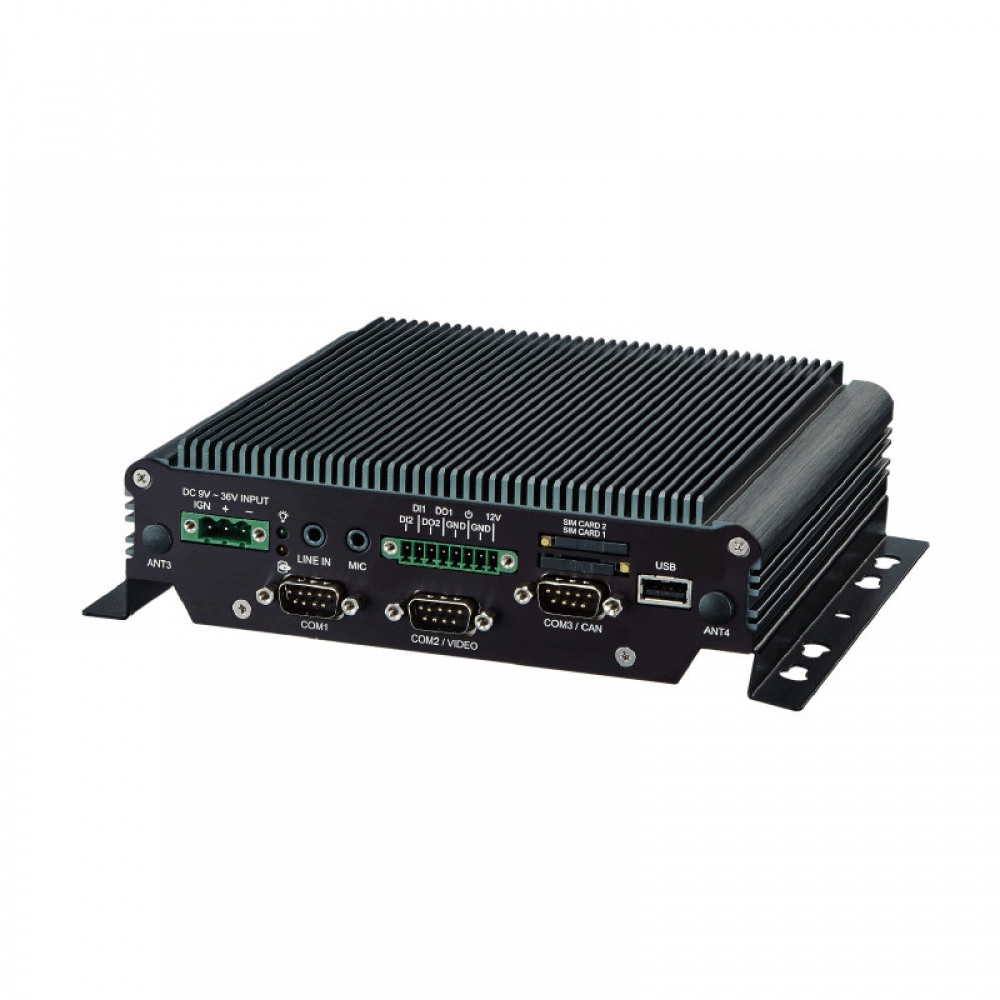

SINTRONES VBOX-3130
intel N3710/N3160/ N3060 (-40 ~ 70°C (SSD), ambient w/ air)- Intel N3160 Quad Core CPU up to 2.24GHz
- Wireless support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
- 9V - 36V DC Power Input
- Smarter Vehicle Power Ignition for Variety Vehicle
- 3 x RS-232 (COM1 & COM2 with RS232/422/485)
- 2 x DI / 2 x DO (12V / 100mA)
/ IPC(Computador industrial)
-
Bluetooth
-
DC
-
Display Port
-
DRAM
-
DVI
-
GPS
-
HDMI
-
Intel
-
Interface
-
LAN
-
Linux
-
Lte
-
POE
-
Serial
-
SSD
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
Processor system
|
CPU |
Intel N3710 Quad Core CPU up to 2.56GHz Intel N3160 Quad Core CPU up to 2.24GHz Intel N3060 Dual Core CPU up to 2.48GHz |
|
Chipset |
- |
|
BIOS/OS Support |
- |
|
Watchdog |
1 ~ 255 Level Reset |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
- |
|
mSATA |
- |
|
PCIe |
- |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
1 x DDR3L-1600 SO-DIMM |
|
Max. |
8GB |
|
Storage |
1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD 1 x SATA DOM |
Graphics
|
Controller |
Intel HD Graphics |
|
Max. Resolution |
- |
Ethernet
|
Controller |
2 x Intel i210-AT Gigabit Ethernet |
|
Connector |
2 x RJ45 Ports for GbE |
Rear I/O
|
VGA |
- |
|
HDMI |
1 |
|
DVI-I/D |
1 |
|
Display Port |
- |
|
Ethernet |
2 x RJ45 |
|
USB |
2 x USB 3.0, 1 x USB 2.0 |
|
Audio |
Mic-in/Line-out |
|
Serial |
3 x RS-232 (COM1 & COM2 with RS-232/422/485) |
Internal connector
|
USB |
- |
|
LVDS/Inverter |
- |
|
Serial |
- |
|
SATA |
- |
|
mSATA |
- |
|
Mini-PCIe |
- |
|
GPIO |
- |
|
SATA PWR |
- |
|
SIM |
2 x SIM Card Sockets Supported Onboard with eject |
Power requirement
|
Power Input |
9V - 36V DC Power Input |
Environment
|
Operating temp. |
-40 ~ 70ºC (SSD), ambient w/ air |
|
Storage temp. |
-40 ~ 80ºC |
|
Humidity |
10 ~ 90% (non-condensing) |
Mechanical
|
Format factor |
Aluminum Alloy |
|
Dimensions |
|
|
Weight |
1406 g |
|
Construction |
182 x 167.6 x 54 mm |
