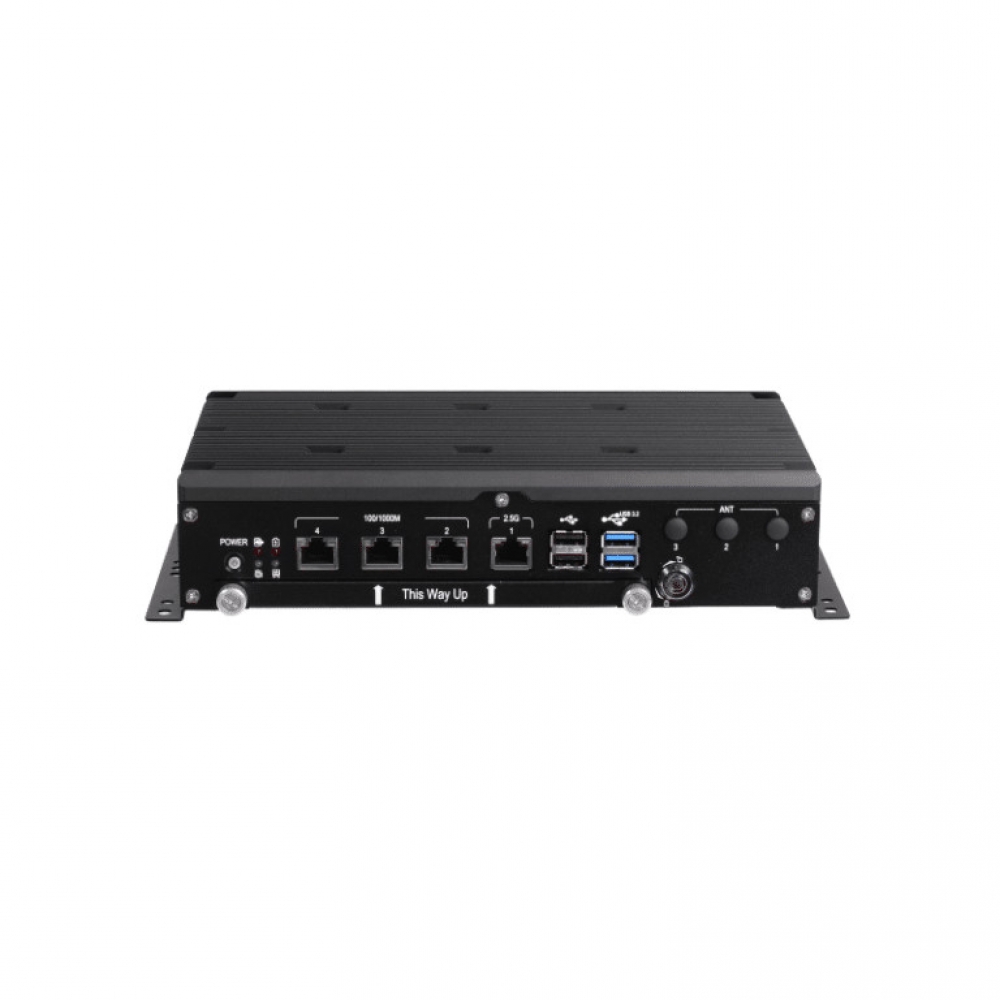

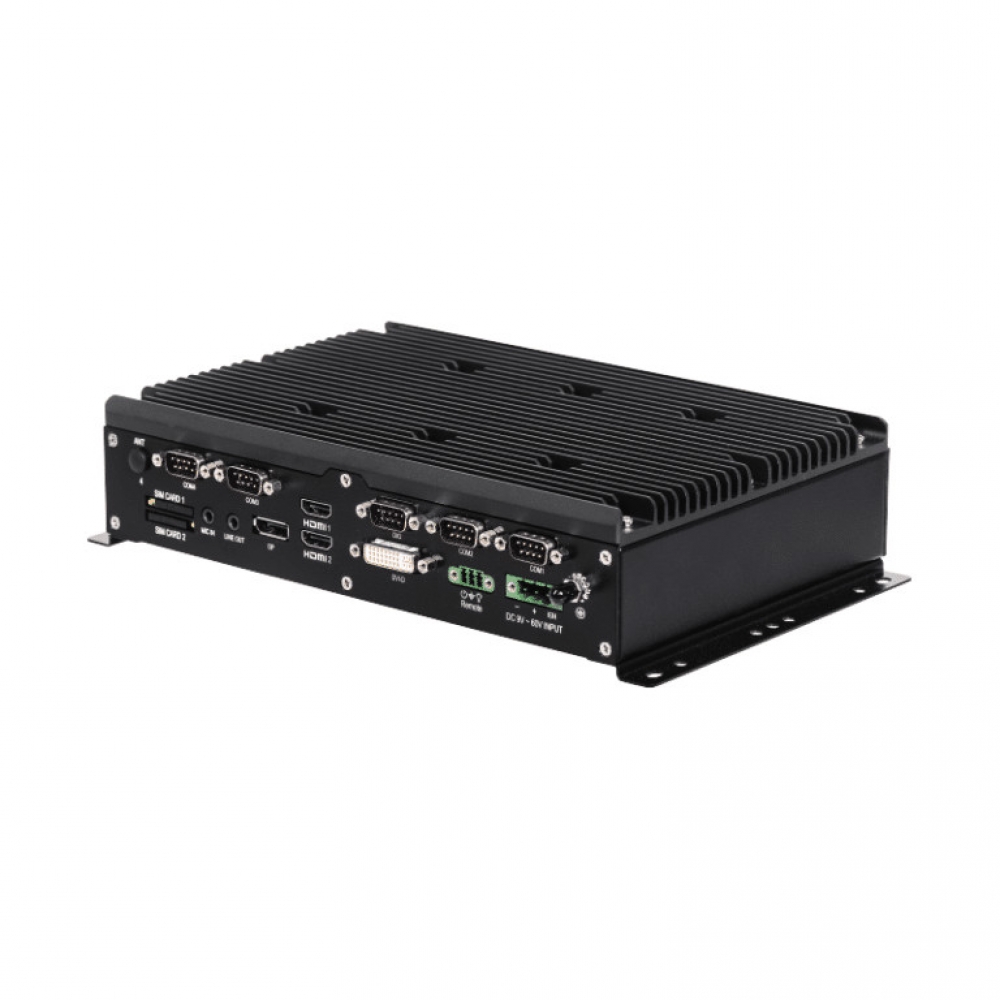

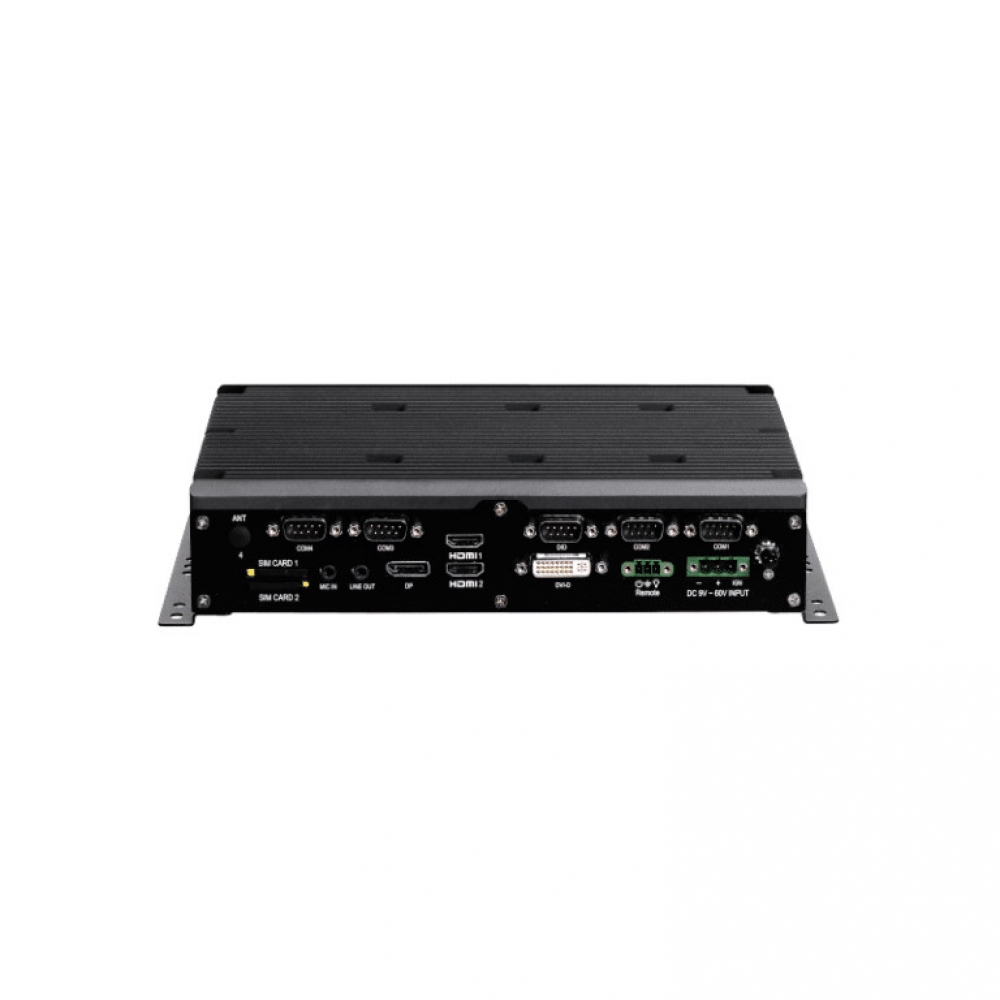

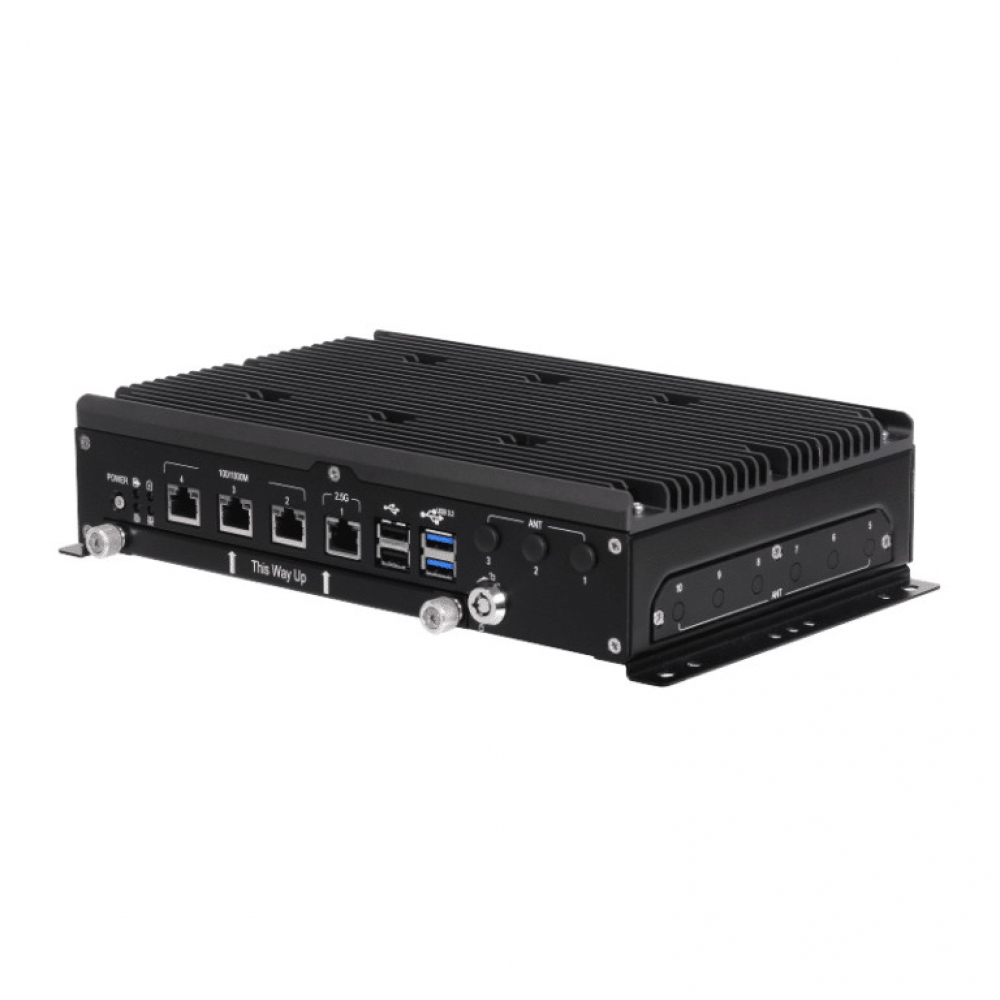

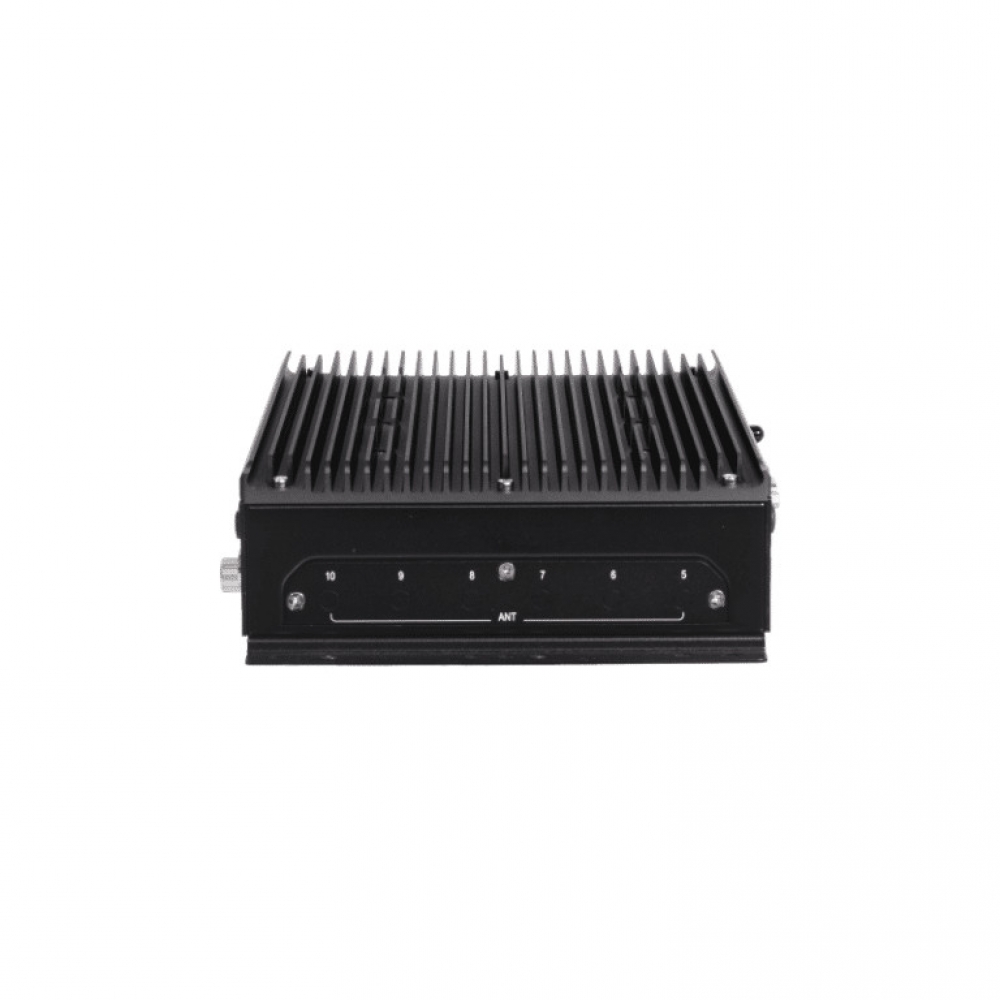

SINTRONES VBOX-3200-V4
AMD G-T56N (-40 ~ 70°C(SSD), ambient w/ air)- AMD G-T56N Dual Core APU with Radeon HD 6320
- Wireless Support LTE, 3.5G, WLAN, GPS, GSM/GPRS, Bluetooth
- 9V - 32V DC Power Input Smarter Vehicle Power Ignition
- 4 Channel D1 Resolution@120fps for Analog Cameras
- 2 IP Ditital Cameras
- HDMI, RGB, SDI Single Channel HD Camera (Optional)
- Support 1 x CAN Bus 2.0B (Optional)
/
-
5G
-
Bluetooth
-
DC
-
Display Port
-
DRAM
-
DVI
-
HDD
-
HDMI
-
Intel
-
Interfície
-
LAN
-
Linux
-
Lte
-
POE
-
Serie
-
SSD
-
TLC
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
Processor system
|
CPU |
AMD G-T56N Dual Core 1.65GHz |
|
Chipset |
AMD A50M Controller Hub |
|
BIOS/OS Support |
- |
|
Watchdog |
1 ~ 255 Level Reset |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
- |
|
mSATA |
- |
|
PCIe |
- |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
2GB DDR3 1333MHz SO-DIMM |
|
Max. |
8GB |
|
Storage |
1 x 2.5” Drive Bay for SATA Type Hard Disk Drive / SSD 1 x SATA DOM |
Graphics
|
Controller |
- |
|
Max. Resolution |
- |
Ethernet
Rear I/O
|
VGA |
1 x VGA Output (Share with DVI-I) |
|
HDMI |
- |
|
DVI-I/D |
1 x DVI-I |
|
Display Port |
- |
|
Ethernet |
2 |
|
USB |
4 x USB 2.0 Ports on Front I/O |
|
Audio |
1 x Line-out (Mic-in or Line-in Optional) |
|
Serial |
3 x RS-232 (2 with RS-422/485 (Auto Direction Control)) |
Internal connector
|
USB |
- |
|
LVDS/Inverter |
- |
|
Serial |
- |
|
SATA |
- |
|
mSATA |
- |
|
Mini-PCIe |
- |
|
GPIO |
- |
|
SATA PWR |
- |
|
SIM |
1 x SIM Card Socket Supported Onboard with eject |
Power requirement
|
Power Input |
9V - 32V DC Power Input |
Environment
|
Operating temp. |
-40 ~ 70ºC (SSD), ambient w/ air |
|
Storage temp. |
-40 ~ 80ºC |
|
Humidity |
10 ~ 95% (non-condensing) |
Mechanical
