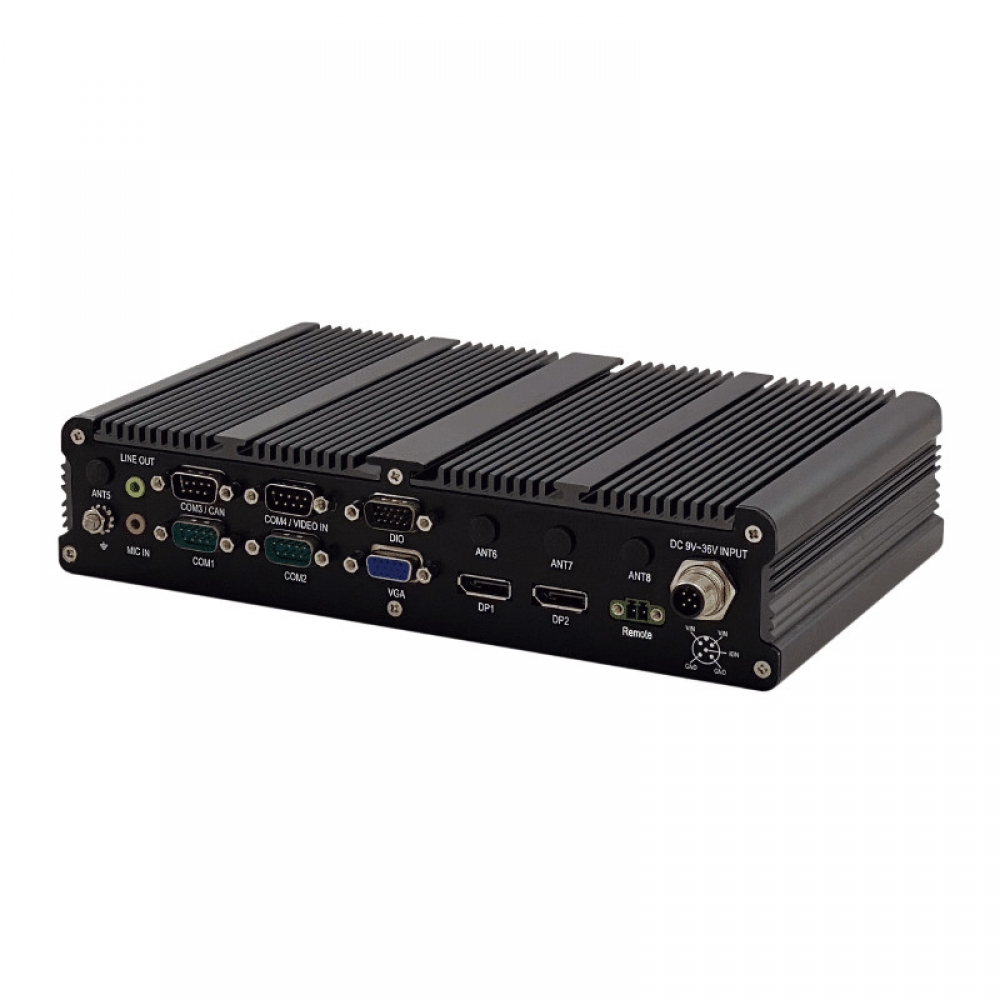

SINTRONES VBOX-3620-M12X

Intel 600U/6300U/6100U/3955U (-40 ~ 70°C (Default CPU 17Watt))

Intel Core i7-6600U / i5-6300U / i3-6100U
Wireless support LTE, 3.5G w/ Dual SIM Cards, WLAN, GPS Dead Reckoning, GSM/GPRS, BT
3 x GbE Including 1 with iAMT
Isolated wide Input Range 9 - 36VDC
Smarter Vehicle Power Ignition for Variety Vehicle
Dual Hot Swappable SATA bays & 1 x SATA DOM, RAID 0, 1, 5
EN50155 Tx

/ IPC(Computador industrial)

Gaming pt

Specifications

Processor system

CPU	Intel Gen6 Core i7-6600U 2.6GHz up to 3.4GHz Intel Gen6 Core i5-6300U 2.4GHz up to 3GHz Intel Gen6 Core i3-6100U 2.3GHz Intel Gen 6 Dual Core 3955U 2.0GHz
Chipset	-
BIOS/OS Support	-
Watchdog	1 – 255 Step

Expansion slot

Memory

Technology

2 x SO-DIMM DDR4

Max.

32GB

Storage

2 x 2.5” Drive Bay for SATA Type HDD/SSD, RAID 0, 1, 5

1 x SATA DOM

Graphics

Controller

Intel® HD Graphics 520

DirectX Video Acceleration (DXVA) for Accelerating Video

Processing - Full AVC/VC1/MPEG2 HW Decode

Supports DirectX 11/10.1/10/9 and OpenGL 4.0

Max. Resolution

4096 x 2304@60 Hz

Ethernet

Controller	2 x Intel I210AT and 1 x Intel i219LM
Connector	3 x 10/100/1000 Mb/s w/ M12 x-code (1 port with iAMT)

Rear I/O

VGA	1
HDMI	-
DVI-I/D	-
Display Port	2
Ethernet	3 x 10/100/1000 Mb/s w/ M12 x-code
USB	2 x USB 3.0 Ports, 2 x USB 2.0 Ports
Audio	1 x Line-out and 1 x Mic-in (Line-in Optional)
Serial	4 x RS-232/422/485, w/ isolation (Auto Direction Control)

Internal connector

USB	-
LVDS/Inverter	-
Serial	-
SATA	-
mSATA	-
Mini-PCIe	-
GPIO	-
SATA PWR	-
SIM	2 x SIM Card Sockets, supported onboard with eject 6 x SIM Card Sockets (Optional)

Power requirement

Power Input

9V - 36V DC Power Input with Isolation

Environment

Mechanical
