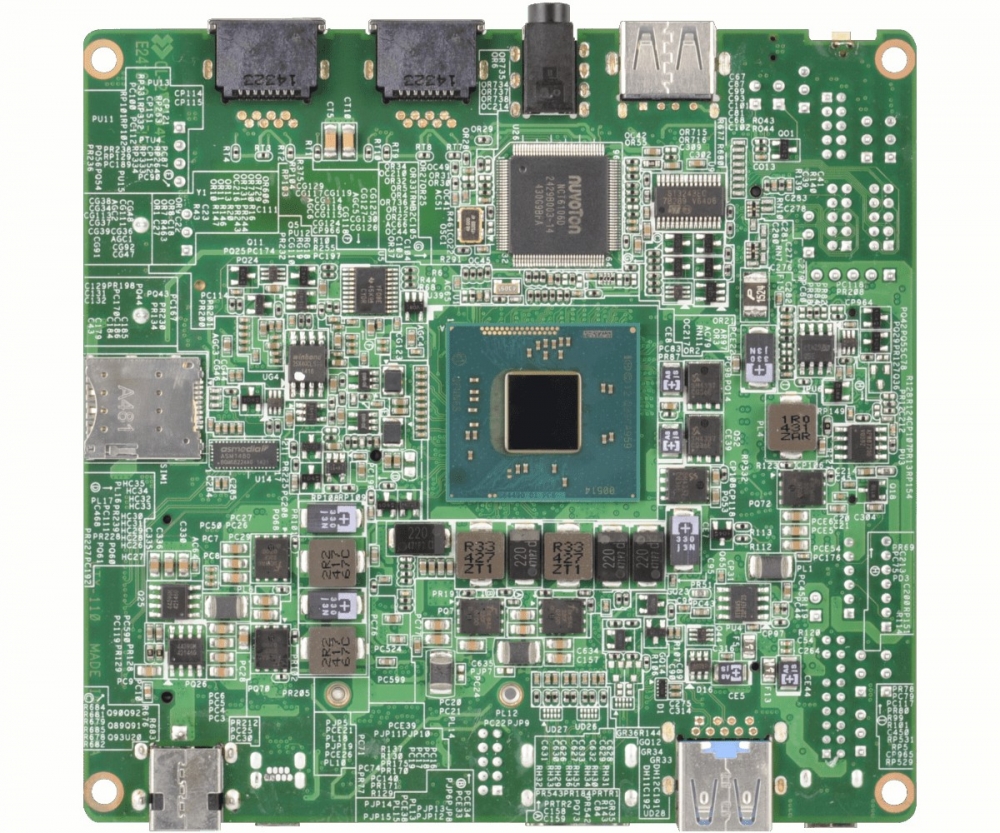

UTX-110
111.76x116.84 mm intel Baytrail-i (0ºC – 60ºC)- Intel® Atom™ Baytrail-i Processor
- UTX-110P (E3845) - Integrated Intel® Gen7 Intel® Graphics DX 11*, OGL3.2
- Supports Single Channel DDR3L 1066/1333MHz, 1 x SO-DIMM, up to 4/8GB system memory
- 2 x HDMI,1 x Dual Channel 24-bit LVDS
- 1 xUSB 3.0, 2 x USB 2.0, 1 x SATA2
- 1 x mini-PCIe(1 x Half size), 1 x mSATA (Full size, co-lay with mini-PCIe function)
- Gigabit LAN : 2 x Intel® 210 x 1
- 12 V DC-in
- Soc Buttom up design
Digital Signage ca / Gaming ca
Kiosk ca
-
DC
-
HDMI
-
Intel
-
Interfície
-
LAN
-
Linux
-
USB
-
VGA
-
Wifi
Specifications
Processor system
|
CPU |
Intel® new AtomTM Baytrail-I Supports Hyper-Threading Technology Default E3826 Dual core processor Optional E3845/3815 Quad/Single Core Processor |
|
Chipset |
(By CPU) |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255sec/min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
1 x full size co-lay with mSATA |
|
mSATA |
1 (Full Size) |
|
PCIe |
- |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
Single Channel DDR3L 1066/1333 MHz SDRAM 1 x SO-DIMM |
|
Max. |
4/8GB |
|
Storage |
SATA2 (3.0Gb/s) |
Graphics
|
Controller |
Intel® Gen7 Intel Graphics DX 11*, OGL3.2 |
|
Max. Resolution |
1920 x 1200@60Hz |
Ethernet

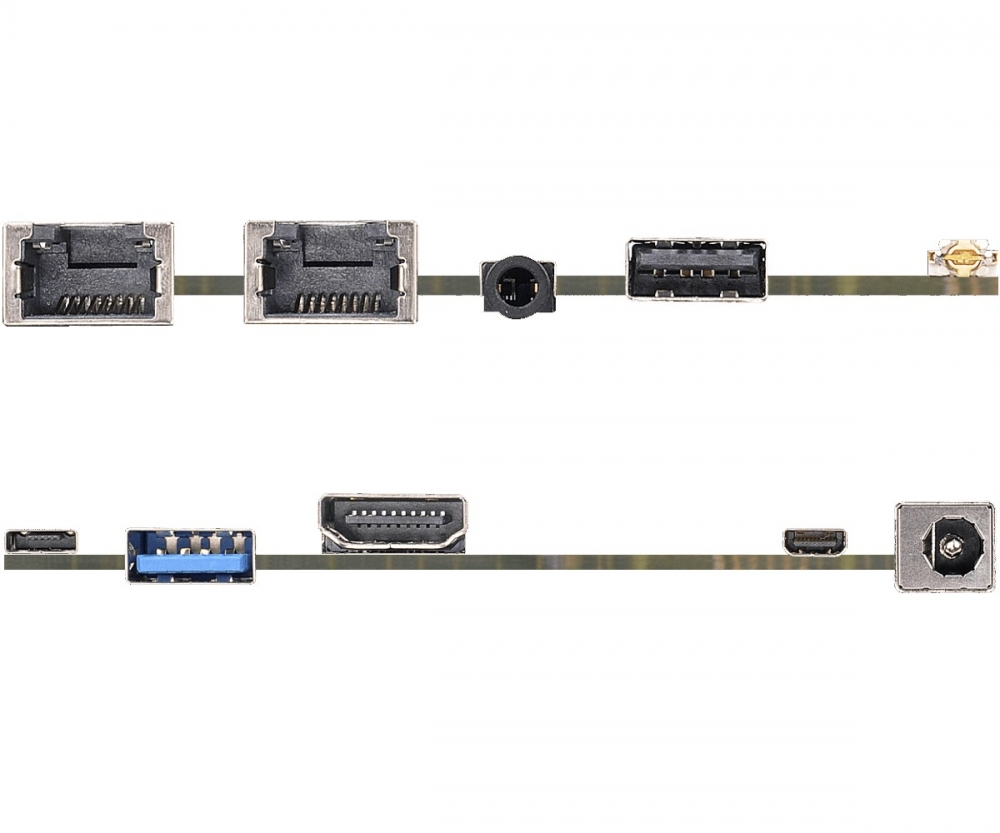

Rear I/O
|
VGA |
- |
|
HDMI |
2 (1 x HDMI, 1 x Micro HDMI) |
|
DVI-I/D |
- |
|
Display Port |
- |
|
Ethernet |
2 |
|
USB |
1 x USB 3.0 Compliant , 1 x USB2.0 Compliant 1 x Micro USB 2.0 SMT type connector |
|
Audio |
1 ( Line out/Mic out) |
|
Serial |
- |
Internal connector
|
USB |
- |
|
LVDS/Inverter |
1/1 |
|
Serial |
(RS-232/422/485 x 1. RS232 x 1) Pin heater 2.0 mm pitch COM1 Pin9 (+5V & +12V) |
|
SATA |
1 x SATA2 (3.0Gb/s) |
|
mSATA |
1 |
|
Mini-PCIe |
2 (full/Half size) |
|
GPIO |
4 x GPI + 4 x GPO Pin heater 2.0 mm pitch |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
12V DC Jack |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
