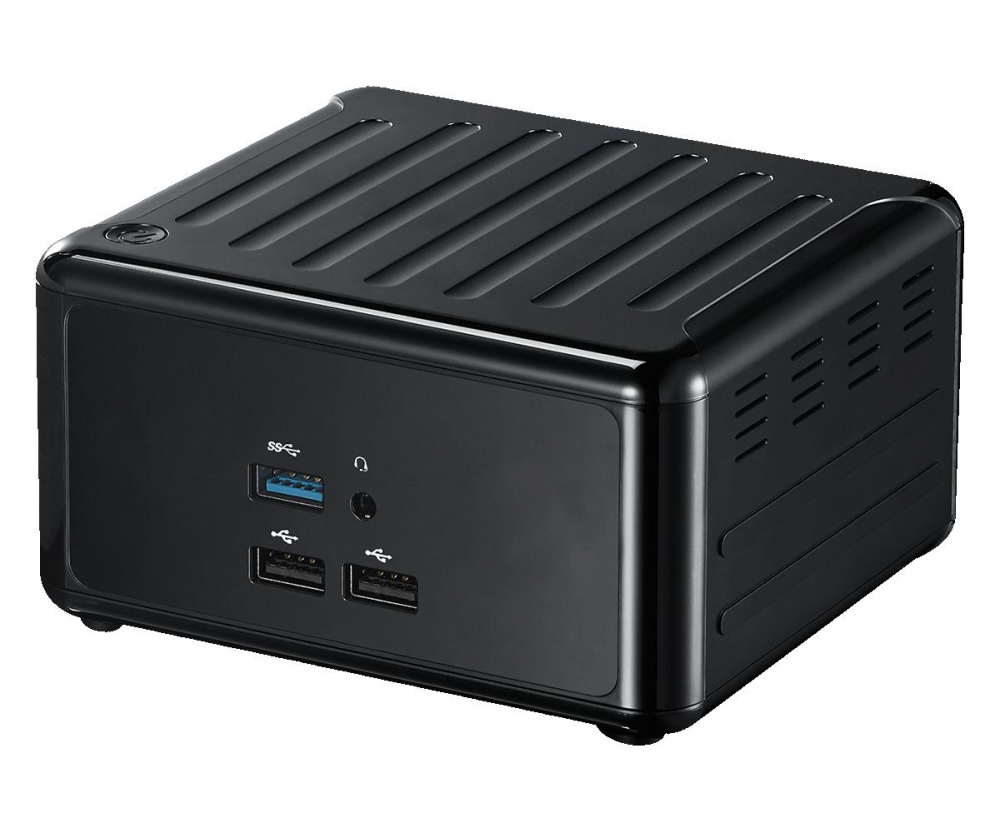

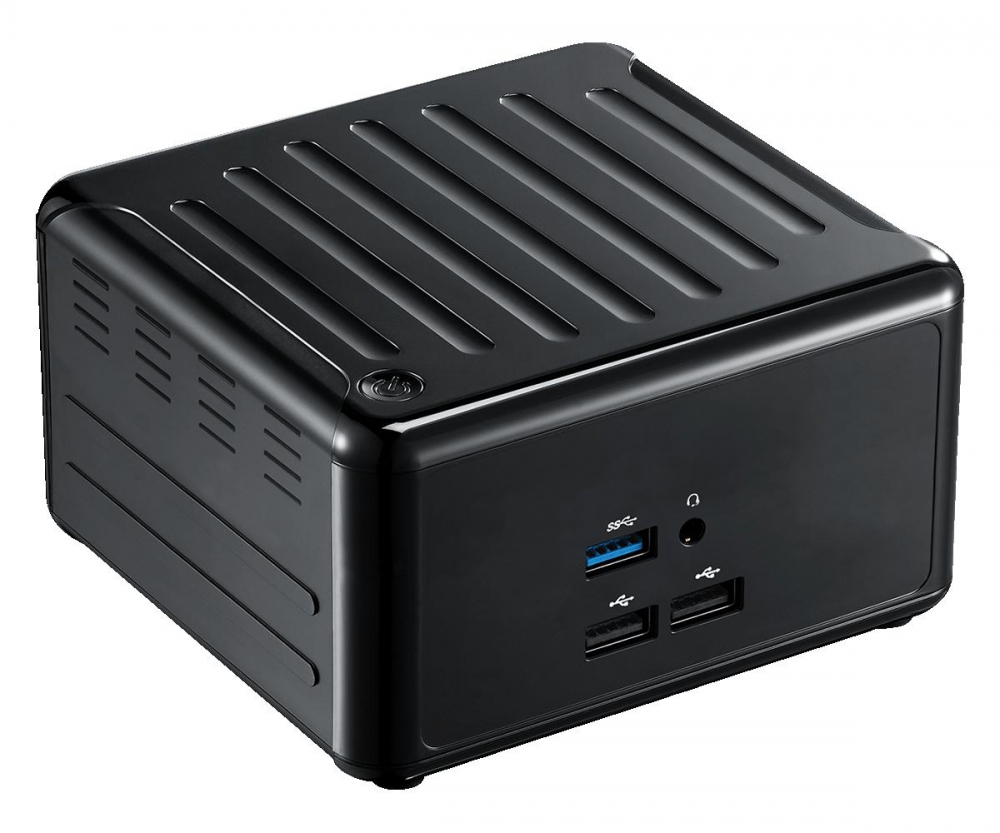

Asrock NUC BOX 8265U
Fanned Embedded BOX PC- Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors
- Supports Dual Channel DDR4 SO-DIMM 2400MHz, up to 32GB
- 1 x HDMI, 2 x Displayport
- Supports Triple Display
- 3 x USB 3.1, 2 x USB 2.0
- 1 x M.2 Key M, 1 x M.2 Key E
- 1 x Intel LAN, 1 x Realtek LAN
- 12V DC-in
Industria / Ordenadores industriales (IPC)
-
DC
-
Display Port
-
HDMI
-
Intel
-
Interfaz
-
LAN
-
USB
-
Windows
Specifications
Processor System
| CPU | Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors I5-8265U QC, 1.6GHz, 15 W |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | 110.0 x 118.5 x 67.3 mm |
|---|
Memory
| Technology | Dual Channel DDR4 2400 MHz |
|---|---|
| Capacity | 32 GB |
| Socket | 2 x SO-DIMM |
Graphics
| HDMI | Supports max resolution up to 4000 x 2000@30Hz |
|---|---|
| DisplayPort | Supports max resolution up to 3840 x 2160@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| M.2 | 1 x Key E (2230) with PCIe x1 and USB 2.0 for Wireless |
|---|---|
| WLAN | 1 x Intel® Wireless-AC 3168 module |
Audio
| Interface | Realtek ALC233, High Definition Audio, Line-out, Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I219V with 10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

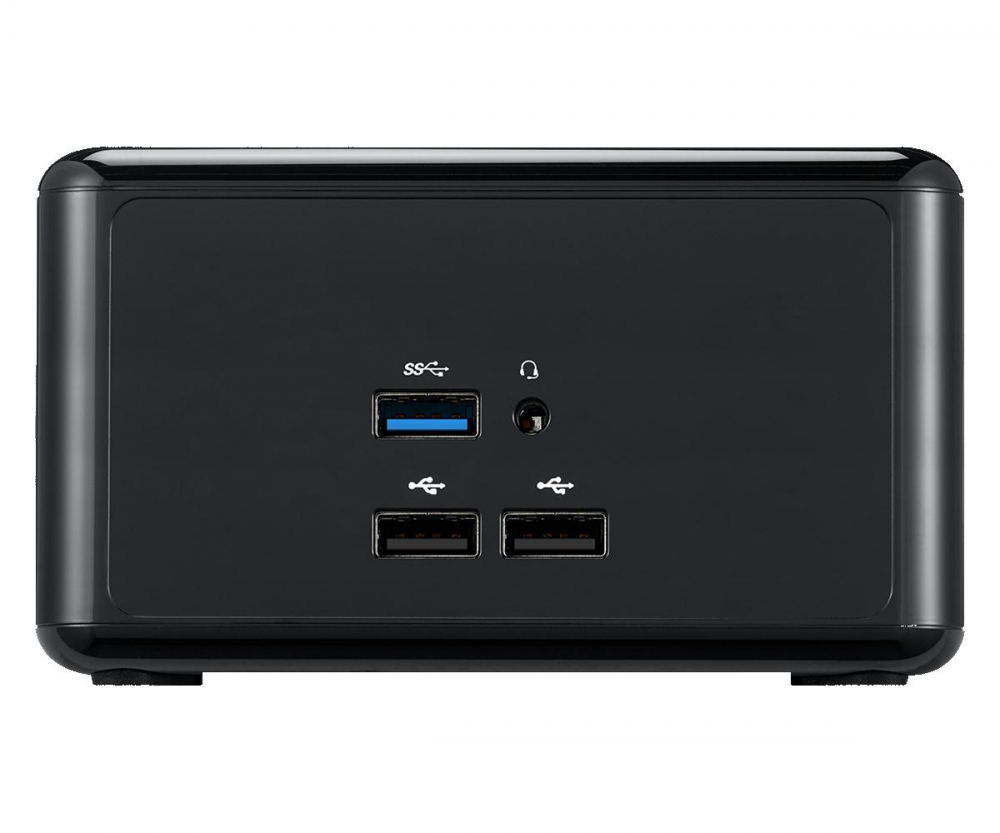

Front I/O
| USB | 1 x USB 3.1, 2 x USB 2.0 |
|---|---|
| Audio | 1 (Mic-in or Line-out) |

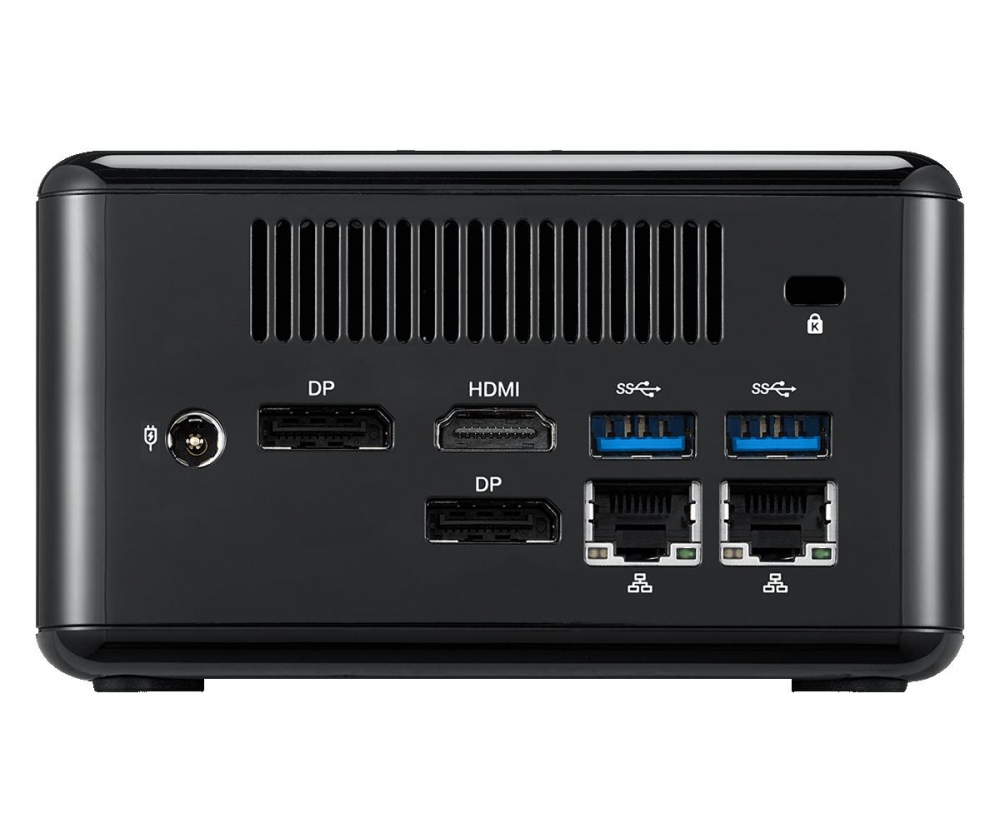

Rear I/O
| HDMI | 1 x HDMI 1.4 |
|---|---|
| DisplayPort | 2 x DP 1.2a |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 2 x USB 3.1 |
| DC Jack | 1 |
Internal Connector
| SATA PWR Output | 1 |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260) with PCIe x4 and SATA3 for SSD *Not support M.2 Key M 2280 |
|---|---|
| SATA | 1 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2....255sec |
Power Requirements
| Input PWR | 1 x 12V/96W Power Adapter |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 40ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 10% ~ 90% |
| Storage Humidity | 10% ~ 90% |
Mechanical
| Construction | Plastic |
|---|---|
| Mounting | VESA mounting bracket |
| Dimensions (L x W x H) | 110.0 x 118.5 x 67.3 mm |
| Weight | Net Weight: 1kg |
Others
| OS Support | Windows 10 |
|---|---|
| TPM | TPM 2.0 onboard IC |
| Certifications | CE, FCC Class A |
| Packing List | 1 x 12V/96W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket |
| Longivity Support | No |
