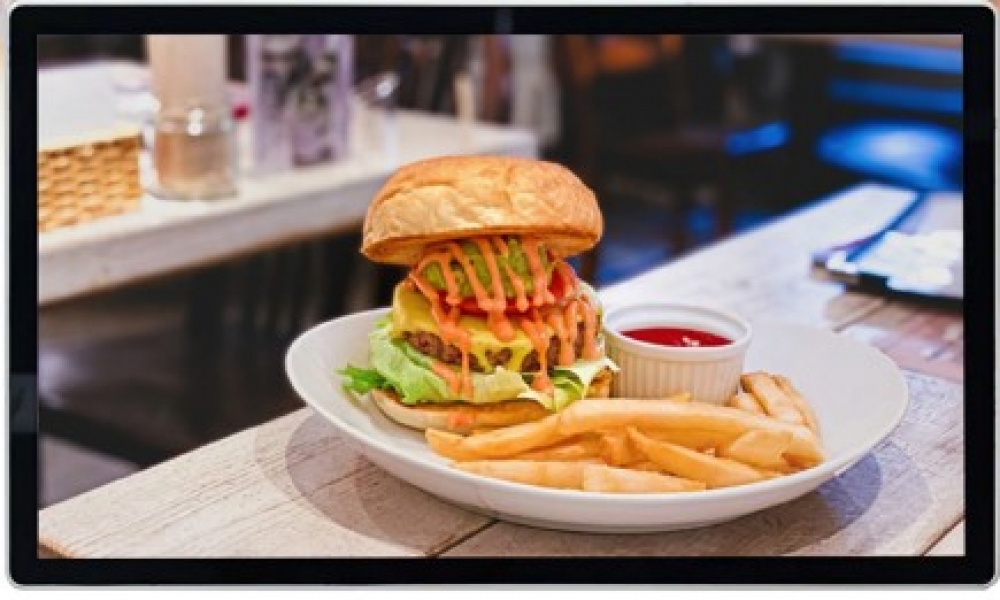

AUO TC15
15.6" LED MONITOR- 15.6" LED Backlight LCD Display
- Advanced computer interface technology
- Low Power Consumption

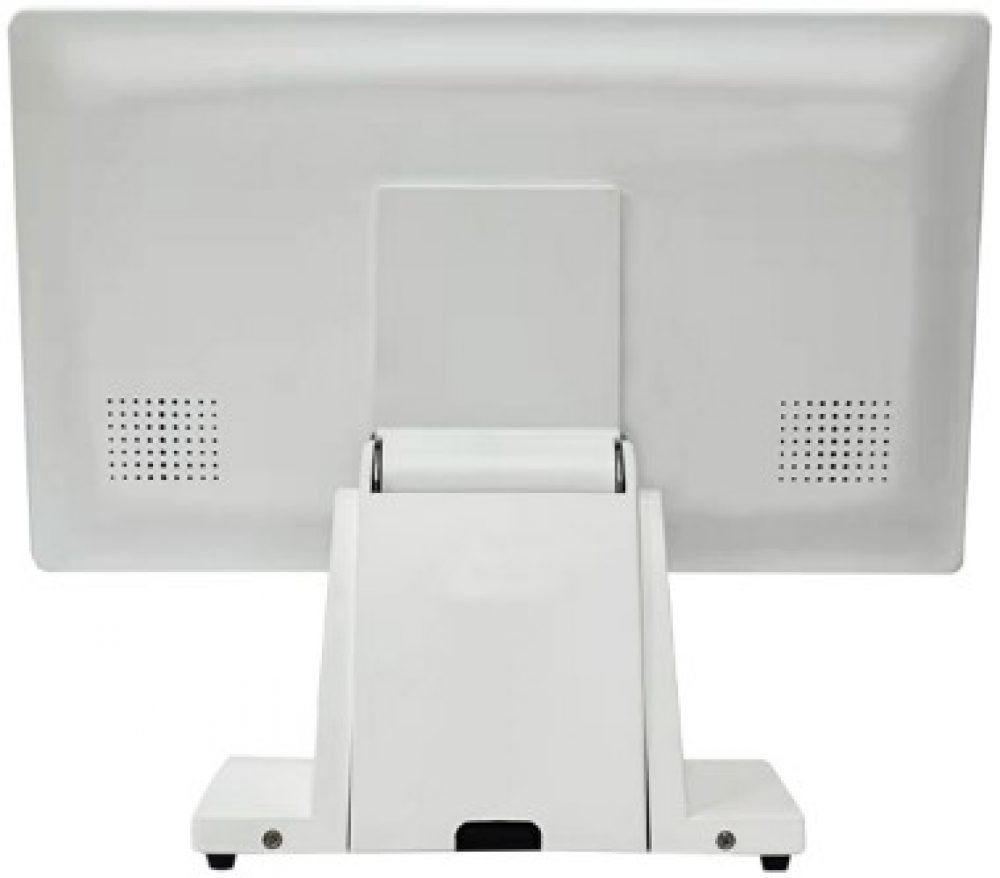

- Adjustables Tilt Stand Base
- PCT TOUCH Optional
- Support IP54 Rating for Flat Screen Front Panel
Industria / Display
-
DC
-
HDMI
-
Interfaz
-
IP5X
Specifications
| Model | TC15 | |
| DISPLAY |
Screen Size | 15.6" |
| Backlight | LED | |
| Aspect Ratio | 16:9 | |
| Max. Resolution | 1920 (H) x1080 (V) | |
| Viewable Size (HxV) | 344.16 (H) X 193.59(V) mm | |
| Pixel Pitch (HxV) | 0.17925 (H) X 0.17925 (V) mm | |
| Brightness (Typ.) | 220cd/m2 | |
| Contrast Ratio (Typ.) | 700:1 | |
| Viewing Angle (HxV) | 170/170(Typ.) | |
| Display Color | 262k | |
| Response Time (Tr/Tf) | 25ms | |

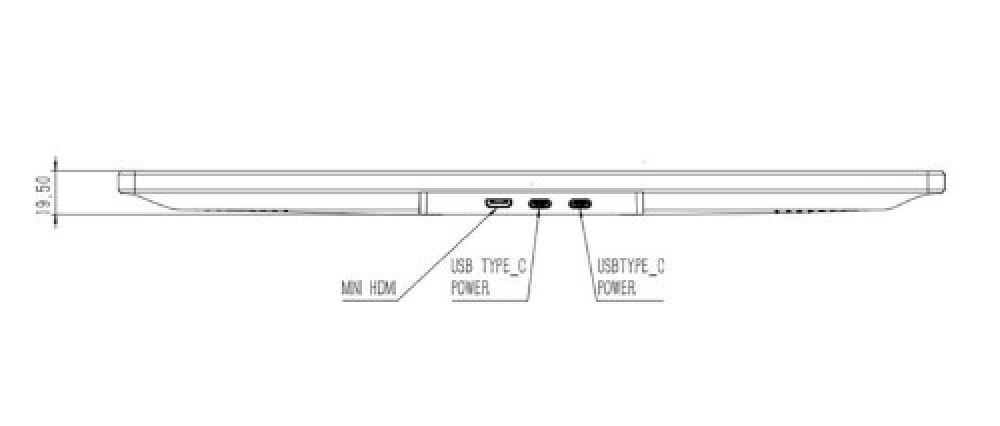

| I/O INTERFACE | Video Input | TYPE-C*2 / Mini HDMI*1 |
| Touch Interface | Built-in TYPE-C | |
| ELECTRICAL |
Power Input |
TYPE-C_PD |
| Power Supply | DC5V / 2A | |
| Power Consumption | 10W max. | |
| GENERAL | Operating Condition | Temp: 0ºC～50ºC, Hum.:20～80% |
| Storage Condition | Temp: -20º～60ºC, Hum.: 15～85% | |
| OPTION | Touch Panel | PCT Touch |
| Mounts | VESA standard 75x75 mm |
