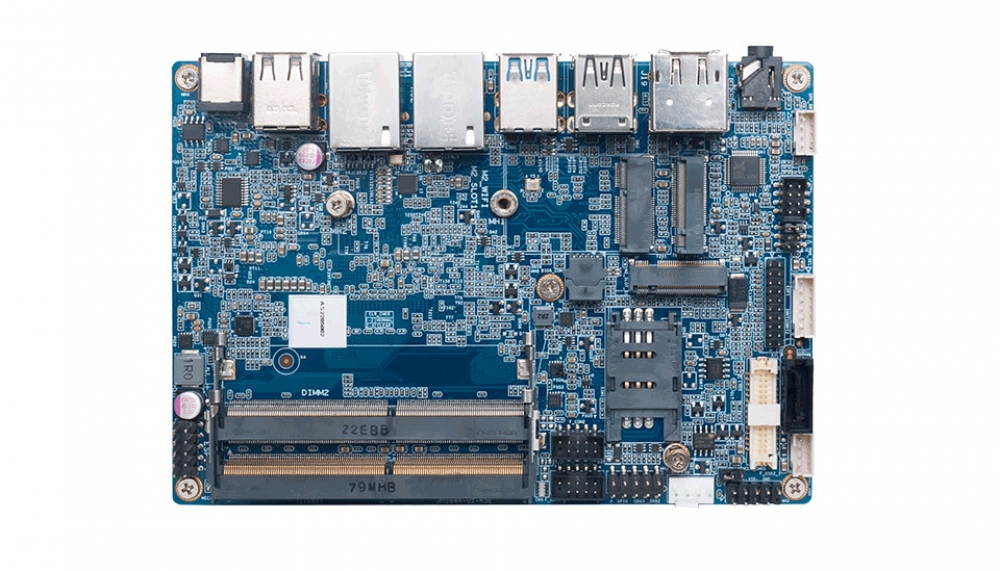

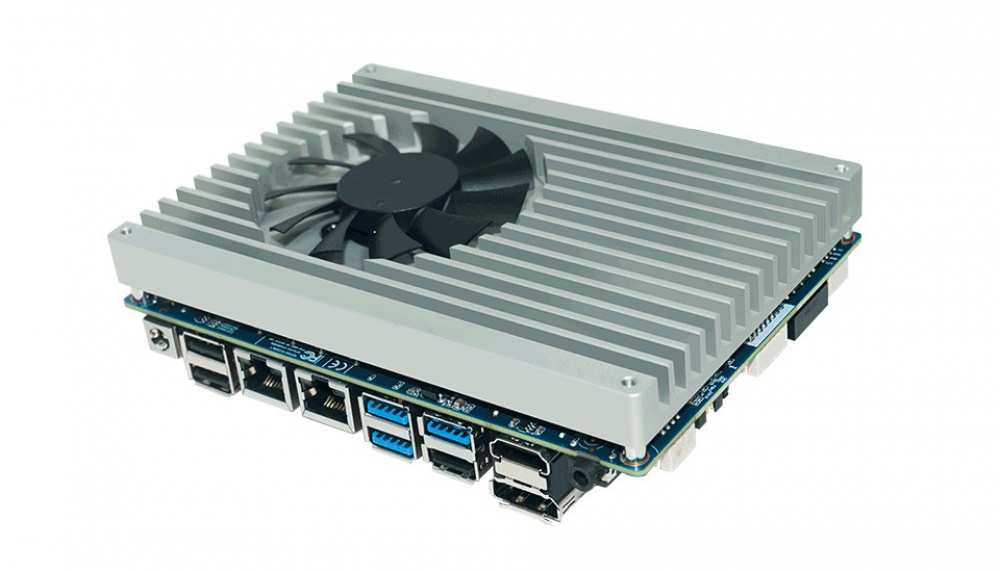

Giada EN-J6412DL
Long Life CycleIntel Elkhart Lake Platform
3.5 Inch Motherboard Intel® Elkhart Lake Processors
Long Life Cycle Product
Supporting Dual 4K Video Playback
Digital Signage / PlacasIndustria
-
3G
-
4G
-
Bluetooth
-
DC
-
Intel
-
Interfaz
-
Linux
-
Serie
-
SSD
-
USB
-
Wifi
-
Windows
Specifications
| Processor | CPU | Intel® Celeron® J6412 processor |
| Frequency | 2.60 GHz | |
| Chipset | SoC | |
| Processing Units | 4 Cores | |
| Scenario Design Power | 10 W | |
| Rear I/O | USB | 3 x USB3.2 Gen1, 3 x USB2.0 |
| Display Interface |
1 x HDMI (Max.4096 x 2304 @60 Hz)
1 x DP (Max.4096 x 2304 @60 Hz)
|
|
| Audio | 1 x 2-IN-1 Headset | |
| Ethernet Interface | 2 x RJ45 | |
| Internal I/O | USB | 2 x USB2.0, signal by 1 x 9pin USB header |
| Display |
1 x 30pin dual channel 24bit LVDS (Max. 1920 x 1080 @60 Hz)
Optional: 1 x eDP
|
|
| Serial port |
1 x RS232, signal by 1 x 9pin COM header
1 x RS232/422/485, signal by 1 x 9pin COM header
|
|
| Audio | 1 x 4pin SPEAKER | |
| Others |
1 x 10pin GPIO, 4GPI, 4GPO
1 x 8pin F_PANEL
1 x 3pin CLR_CMOS
1 x 7pin INVERTER
1 x 4pin SATA_PWR
1 x 4pin SYS_FAN
|
| Network | Network Controller | 2 x Realtek RTL8111H Gigabit Ethernet |
| Wi-Fi/BT | 1 x E-Key M.2 (2230) for Wi-Fi 6/BT | |
| Mobile Network |
1 x M-Key M.2 (3042) for 3G/4G
1 x SIM Slot
|
|
| System | GPU | Intel® UHD Graphics for 10th Gen. Intel® Processors |
| Graphic Engine | DirectX, OpenGL, OpenCL | |
| System Memory | Up to 32 GB, 2 x SO-DIMM DDR4 | |
| Storage |
1 x M-Key M.2 (2280) for PCIe SSD
1 x 2.5” SATAIII
Optional: Onboard eMMC5.1
|
|
| TPM | Optional: TPM2.0 | |
| Watchdog Timer | Yes | |
| Auto Power On | Yes | |
| RTC | Set up independently every day, a week as a cycle | |
| Power Requirement | DC-IN, 12 V~24 V | |
| Dimensions | 146 mm x 102 mm (5.74” x 4.02”) | |
| Fan | Yes | |
| Operating system |
Windows 11 (64bit)
Windows 10 (64bit) / Linux Ubuntu (64bit)
|
|
| Operating Temperature | 0°C ~60°C (32°F~114°F) @0.7m/s Air Flow | |
| Humidity | 95% @ 60°C (non-condensing) |
