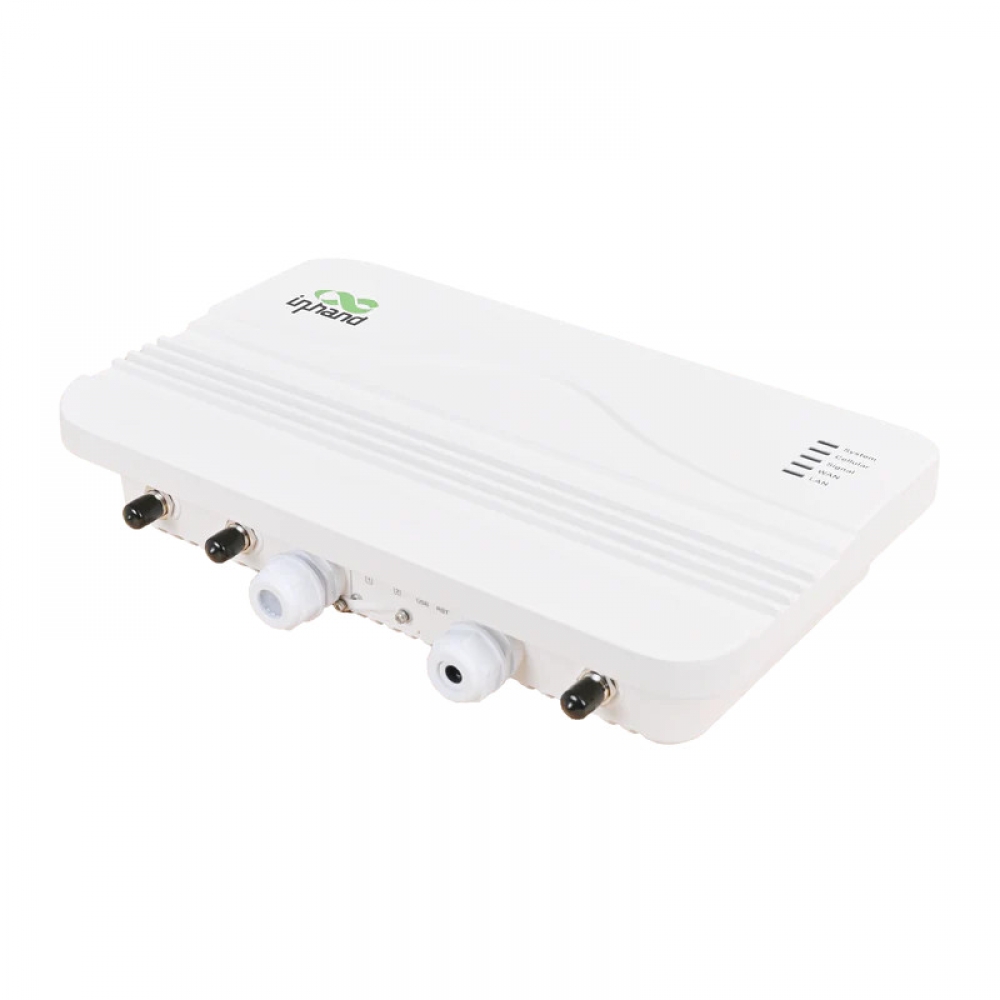

InHand Networks ODU2002-NAVA
ODU2000 Cloud-Managed 5G Outdoor Unit High Speed Router, Cloud-Managed, IP67 The 5G ODUs are designed for organizations and individuals who need to build, expand or optimize 5G networks in specific locations. These customer segments are typically characterized by a strong demand for high-speed, stable and reliable 5G signaling and coverage.The cloud-managed 5G ODU 2000 series, combined with InCloud Manager SaaS service, provides global customers with high-speed, convenient, and secure 5G efficient networks. Leveraging high-performance and fast 5G cellular network access, InHand 5G ODU delivers excellent connectivity with low latency, fully unlocking the potential of 5G.
Industria / IoT
-
4G
-
5G
-
Sin ventilación
-
GPS
-
IP6X
-
IPX7
-
LAN
-
USB
-
Wifi
Specifications
| 5G ODU 2000 Hardware | ||
| Hardware Platform | ||
| Throughput | Up to 2Gbps | |
| Recommended Users | 200 | |
| Interface Description | ||
| Cellular | 5G: 4.67Gbps (DL)/1.25Gbps (UL) 4G: 1.6Gbps (DL)/200Mbps (UL) |
|
| USB | 1* Type-C 2.0 | |
| GPS | GPS/GLONASS/Beidou/Galileo/QZSS | |
| SIM | 1*eSIM 2*SIM，Nano 4FF SIM slot, Hot plug |
|
| RESET | Reset button | |
| Ground Termina | 1*GND | |
| Lights | System, Cellular, Signal, WAN, LAN | |

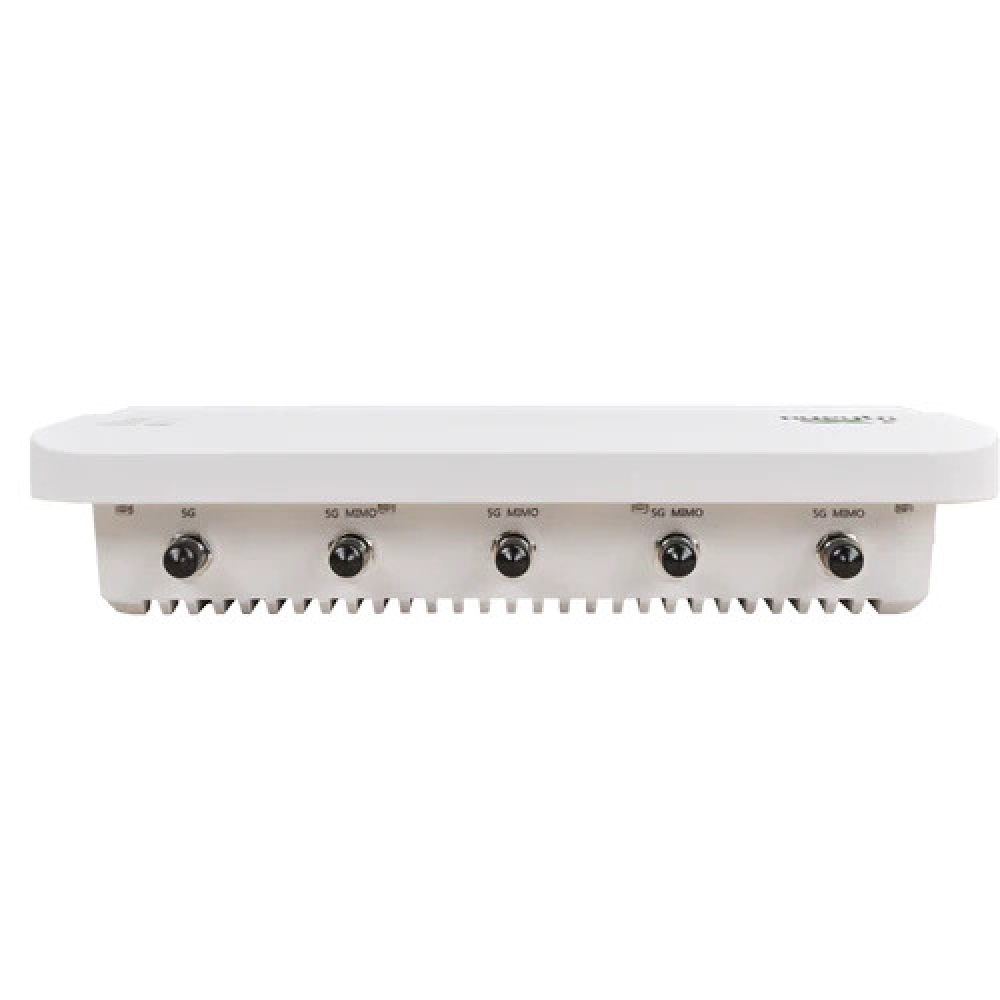

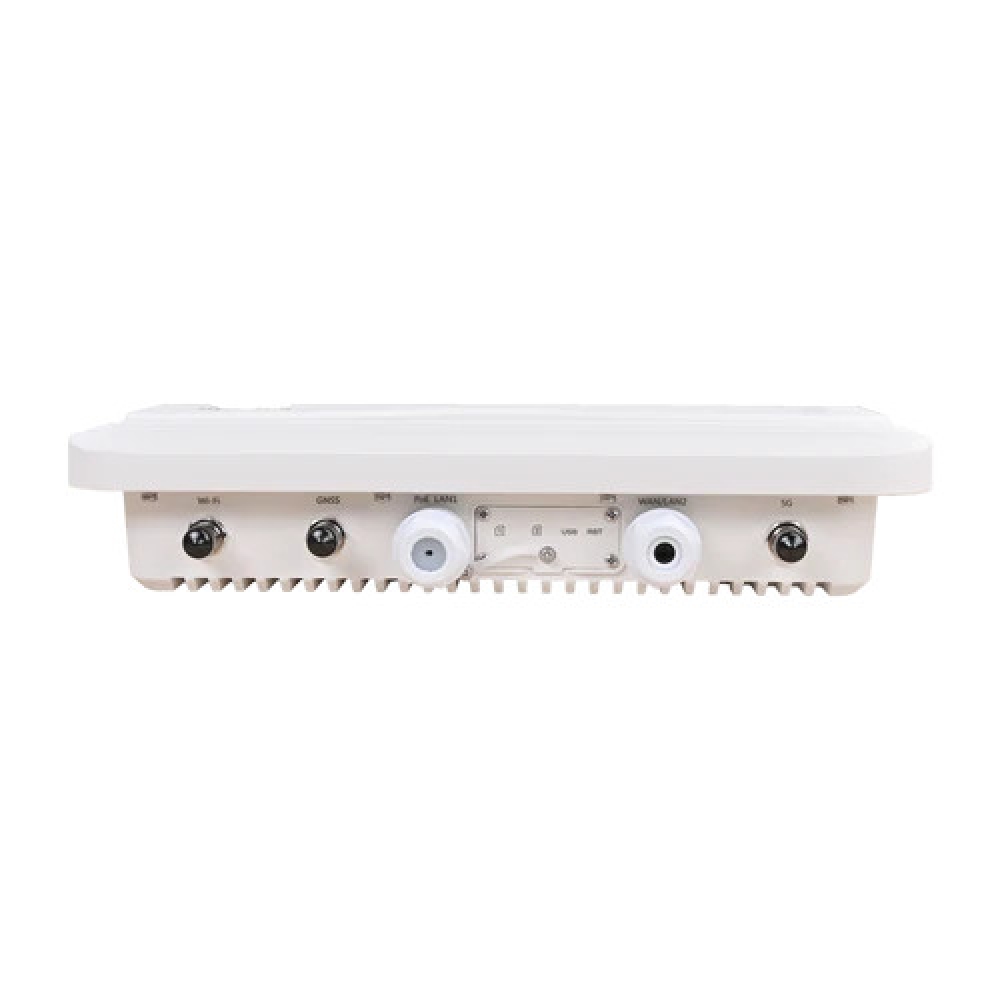

| Antenna Interface | TNC-type connectors 6*Sub 6, 1*GNSS, 1*Wi-Fi |
|
| Wi-Fi | |
| Radio Frequency | Single band 2.4GHz |
| Max Transmission Bandwidth | 150Mbps |
| Transfer Protocol | 802.11 b/g/n |
| Maximum Output Power | 17dBm |
| Operating Mode | AP mode |
| Power Supply | |
| Power | Power over Ethernet (PoE) - 802.3at |
| Power Consumption | ≤15W |
| Mechanical Features | |
| Installation | Wall mounting, pole mounting |
| Dimensions & Weight | 360*220*72(mm)，2.87kg |
| Housing & Cooling | Metal & Fanless |
| Environment | |
| Working Temperature | -30°C to 70°C (-22℉ to 158°F) |
| Storage Temperature | -40°C to 85°C (-40℉ to 185°F) |
| Humidity | 5% to 95% (non-condensing) |
| Salt Mist | IEC60068-2-52 |
| Certification | |
| Certificates | FCC, IC, PTCRB, Verizon, T-mobile*，CE* Note: The functions marked with * are not implemented yet. |
| Warranty | 3 years |
| Cloud-based Management 5G ODU 2000 Function | |
| Completely Based on Cloud Management | |
| InCloud Manager | Centralized management platform Simple and intuitive dashboard User-friendly management Batch upgrade and management |
| Uplink Management | |
| Network Access | Multiple network access, 5G/4G cellular network access, ETH network access |
| Smart Link | Link backup/packet-by-packet load balancing among multiple links Real-time detection of link delay, jitter, and packet loss Supports priority adjustment |
| Monitoring & Alerting | |
| Dash Board | Device information, interface status, and refined traffic |
| Link Monitoring | Link delay, jitter, packet loss, and throughput monitoring |
| Cellular Signal | Real-time view of cellular signal strength、RSSI、RSRP、 RSRQ、SINR |
| Log & Alarm | System logs, diagnostic logs, device events, email alerts |
| Network Function | |
| IP Protocol | IPv4/IPv6* |
| IP Application | VLAN, DHCP server/client, DNS, DDNS*, fixed address assignment, IP passthrough |
| Interface Management | Duplex mode, link negotiation rate, interface enable |
| Wi-Fi | Support 2.4G Wi-Fi，AP |
| Policy Management | Policy routing, traffic shaping |
| Self-recovering | Built-in software and hardware watchdog, self-healing equipment operation failure, to ensure the equipment maintains high availability |
| Remote Maintenance | |
| Remote Access Control | Support Web/Cli remote access |
| Cloud Connection | Remote maintenance of PCs, monitoring equipment, servers, etc. |
| Network Diagnostics | Support Ping, Traceroute, network packet capture tools, diagnostic logs |
| Configuration Backup | Support configuration import and export |
