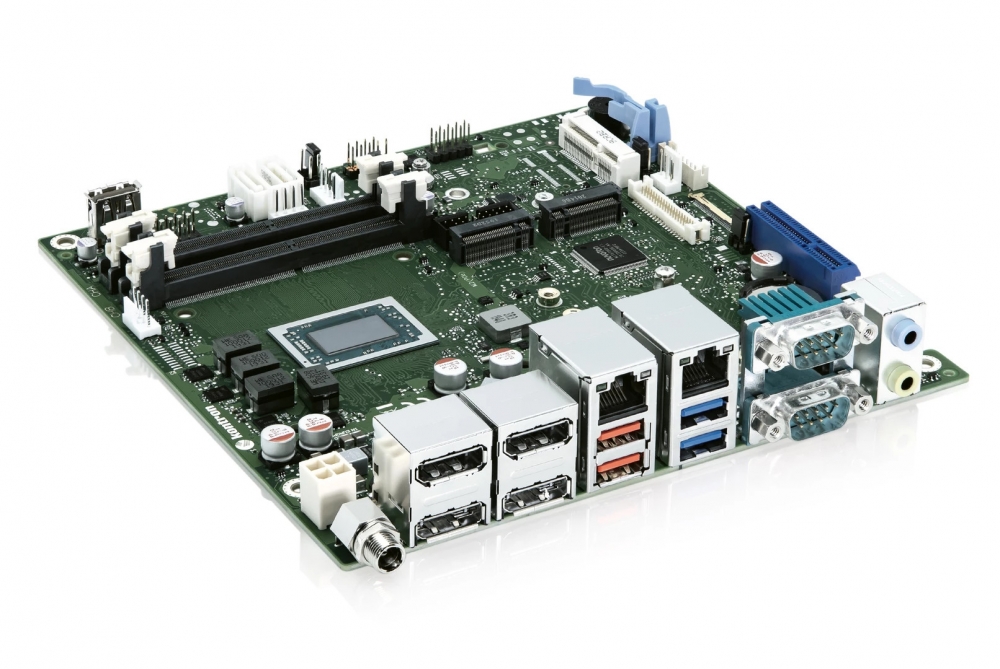

Kontron D3723-R mITX
- AMD Radeon™ Vega Graphics (within SoC)
- Up to 4x DisplayPort V1.4
- Dual Channel LVDS (24 Bit) and eDP V1.3 (4 k) onboard
- M.2 Key-B & M.2 Key M & Mini-PCI Express® supported
- Windows 11 support
The industrial motherboard D3723-R mITX supports the AMD Ryzen™ Embedded R2000 processor series with integrated AMD Radeon™ Vega Graphics and can be used in applications with high graphical requirements like casino gaming, medical displays, thin clients and industrial PCs. It is equipped with up to four DisplayPorts, one embedded Display-Port and one Dual-Channel LVDS (24bit) and powers up to four independent displays in 4K resolution.
-
DC
-
Display Port
-
Intel
-
LAN
-
Linux
-
Serie
-
USB
-
Rango extendido de temperatura
| Processor | AMD Embedded R2312 SoC AMD Embedded R2314 SoC AMD Embedded R2514 SoC AMD Embedded R2544 SoC |
| Chipset | SoC |
| Main Memory | 2c DDR4 2400/2666/3200 up to 32 Gbyte; ECC Option |
| Graphics Controller | Integrated AMD Radeon™ Vega Graphics |
| Display | up to 4x DP V1.4 1x eDP @ 4 lanes 1x LVDS |
| Audio Controller | Realtek ALC256 |
| Audio | Stereo |
| Ethernet | Intel® i210LM with 10/100/1000 MBit/s |
| USB | 2x USB 2.0 (by header) 2x USB 3.1 Gen1 2x USB 3.1 Gen1 (by header) 2x USB 3.1 Gen2 |
| Serial | 1x RS232/422/485; 3x RS232 (2x by header) |
| Available I/Os | GPIO (by header) |
| SATA | 2x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI |
| Expansion | 1 x M.2 Key-M (PCIe x4) R1: M.2 Key-M socket shared with PCIe x4 slot (M.2 or PCIe slot usable; BIOS Setup option) 1 x M.2 Key-B (SATA or PCIe) |
| Power connector | External/Internal DC-In 8-36 V (DC Jack/4-Pin) |
| Input Voltage | DC Input 8 V-36 V (max. 10 A /max. 125 W) |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | 2 level HW Watchdog (BIOS Boot/OS) |
| Real Time Clock | Integrated |
| Cooling | 2x PWM fan (CPU/System) |
| Operating System | MS Windows 11 MS Windows 10 Linux-64 |
| Mechanical Dimensions | Mini-ITX: 6.7“ x 6.7“ (170 x 170 mm) |
| Operating Temperature | -10 °C – 70 °C |
| Humidity | 5%-85% |
| Certifications | CE Class-B, FCC-B verified cTÜVus acc. IEC62368-1 planned |
