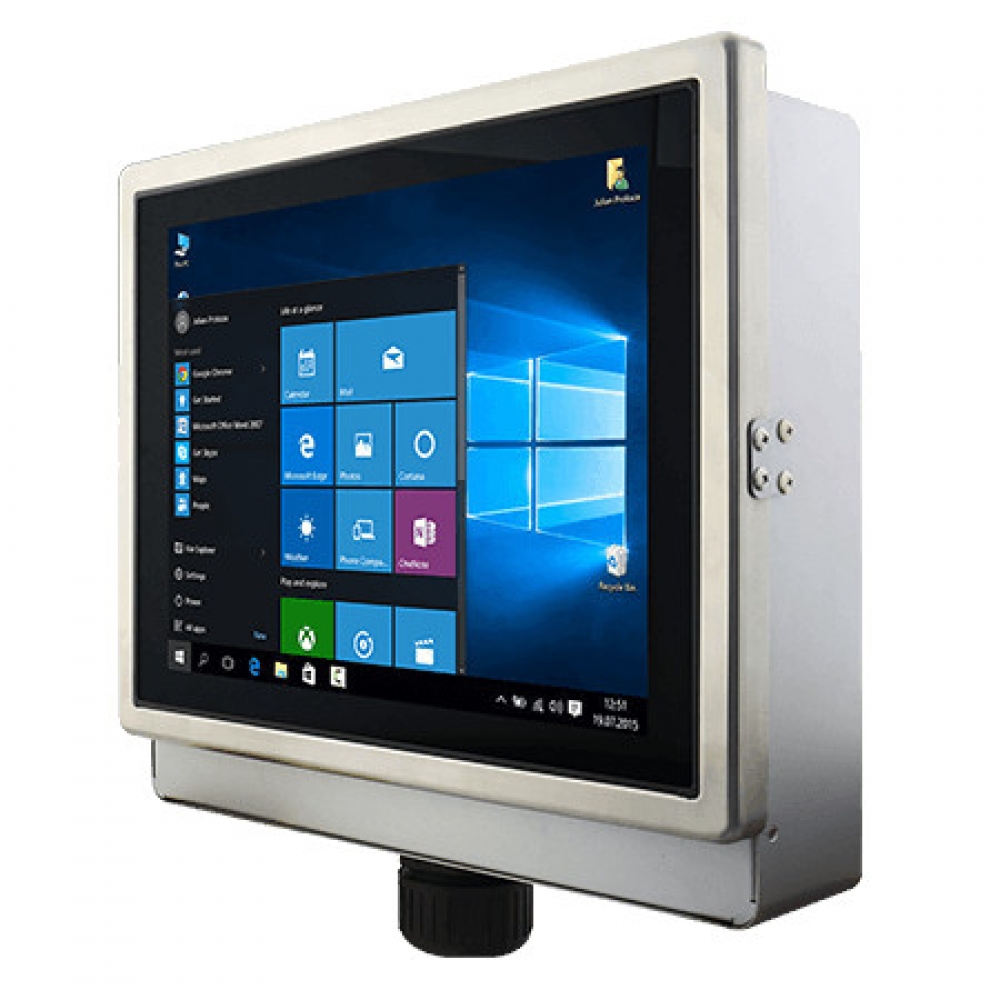

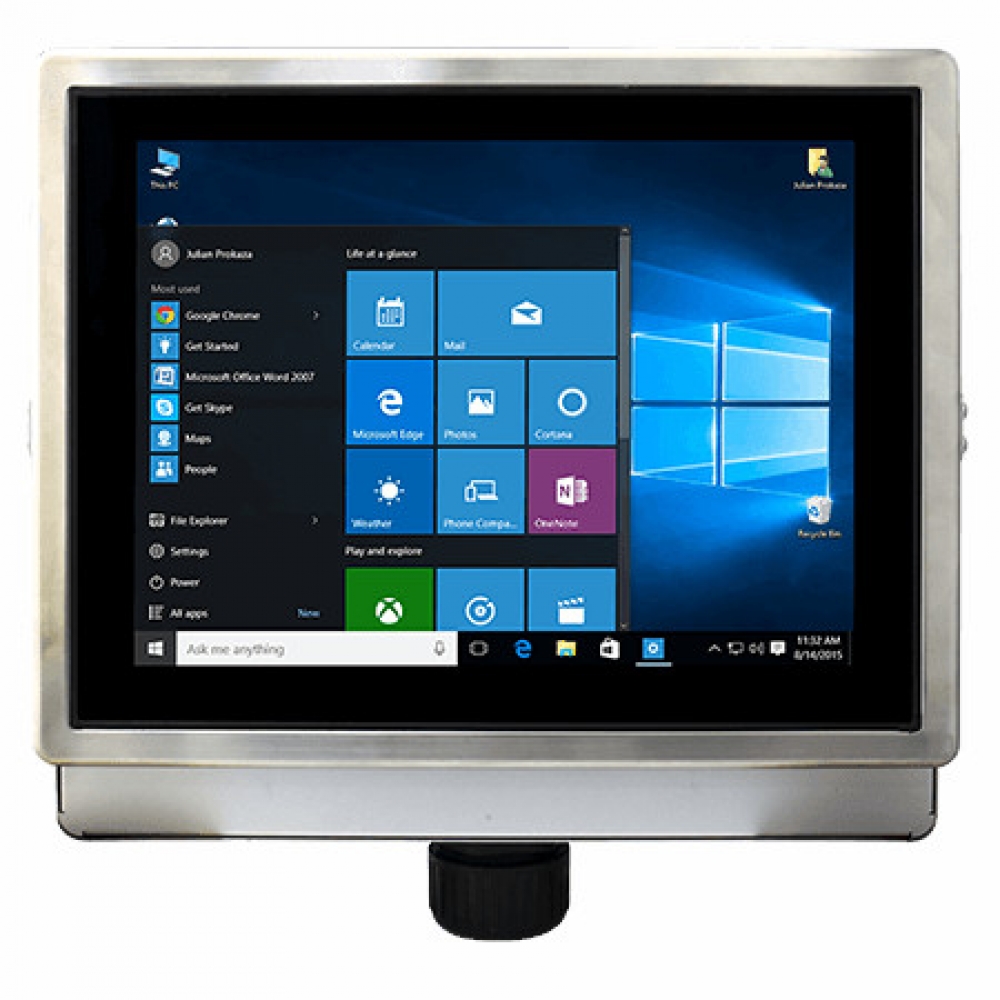

Winmate R15IE3S-65EX
15" Intel® Atom® x6413E ATEX Panel PC- Intel Atom® x6413E Processor 1.5M Cache, up to 3.00 GHz
- High Quality 15″ Panel, 1024 x 768 resolution, 1000 nits
- P-cap multi touch screen Optical Bonding with Panel to increase the clarity and transparency
- Compliance with ATEX / IECEx / CID2 Design
- Fanless design with streamlined enclosure for highly efficient heat dissipation
- Dust/ Water proof design with VESA mount Full IP65 Panel PC
- Wide Range 9 to 36V DC Input with isolation
- -20 to 60°C wide operating temperature
Industria / Sistemas
-
AC
-
DC
-
Sin ventilación
-
Intel
-
Interfaz
-
IP6X
-
IPX5
-
Linux
-
Multi-táctil
-
SSD
-
USB
-
Rango extendido de temperatura
-
Wifi
-
Windows
Specifications
Processor
Intel Atom® x6413E ( up to 3.0GHz)
Memory
1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional)
Storage
1 x M.2 2242 B-key SSD 128GB 256GB (Optional) 512GB (Optional)
Ethernet controller
1 x Intel® Ethernet Controller
Operating System
Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional)
Touch / Glass
Projected Capacitive Multi Touch Screen Bonding With Panel
Size
15.0 inches
Resolution
1024x768
Panel Brightness
550 nits 1000 nits(Optional)
Contrast Ratio
2000:1
View Angles
88,88,88,88
Active Area
304.1x228.1 mm
Dimension
396 x 310 x 49 mm (Without Box Cover) 396 x 346.4 x 101.7 mm (With Box Cover)
Weight
5.7 kg (Without Box Cover) 10.2 Kg (With Box Cover)

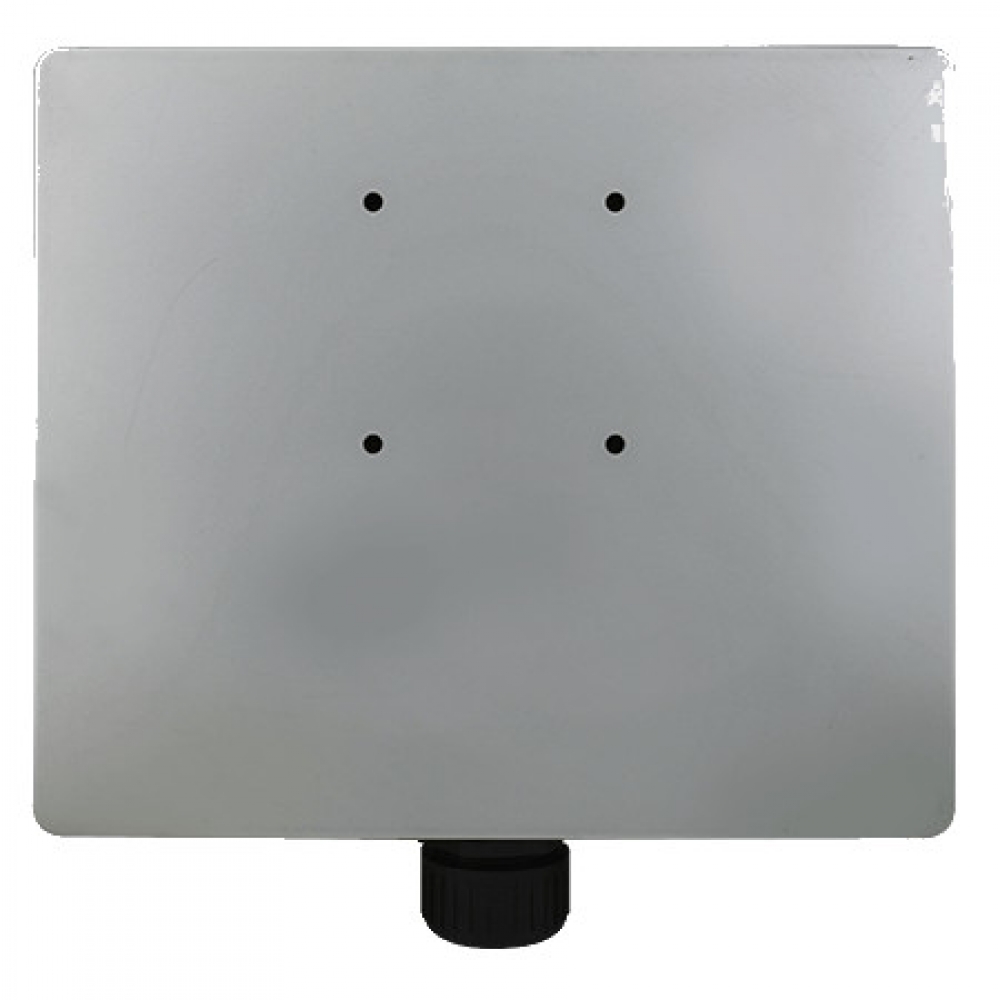

Mounting
VESA Mount
Enclosure
Stainless Housing
Cooling System
Fanless design
Environment
Operating Humidity
10% to 95% RH, Non-Condensing
Operating Temperature
-20°C to 60°C
Storage Temperature
-30°C to 70°C
Shock
MIL-STD-810G Method 516.6 Procedure I (Optional)
Vibration
MIL-STD-810G Method 514.6 Procedure I
Drop
MIL-STD-810G Method 516.6 Procedure IV
IP rating
IP65
Certification
CE, FCC, IC Compliance with ATEX / IECEx / CID2 Design
USB Port
1x M12 type connector for 2 x USB2.0
Serial Port
1 x M12 connector for RS232/422/485 (Default RS232)
LAN
1 x M12 type connecctor for Giga LAN
Expansion Port
1 x M.2 2242 B-key Slot (for SATA III SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module)
Indicator
1 x LED Indicator for power 1 x LED Indicator for storage
Power Input
1 x 9~36V DC, M12 Type connector
Button
1 x Power Button 1 x Reset Button
Accessory
100~240V AC to DC Power Adapter with M12 Connector Power Cord M12 Type Power Cable M12 Type RS232 Male Cable M12 Type USB Female Cable M12 Type LAN Cable RJ45 female-female converter USB Adapter (USB type A to type B) VESA screws
