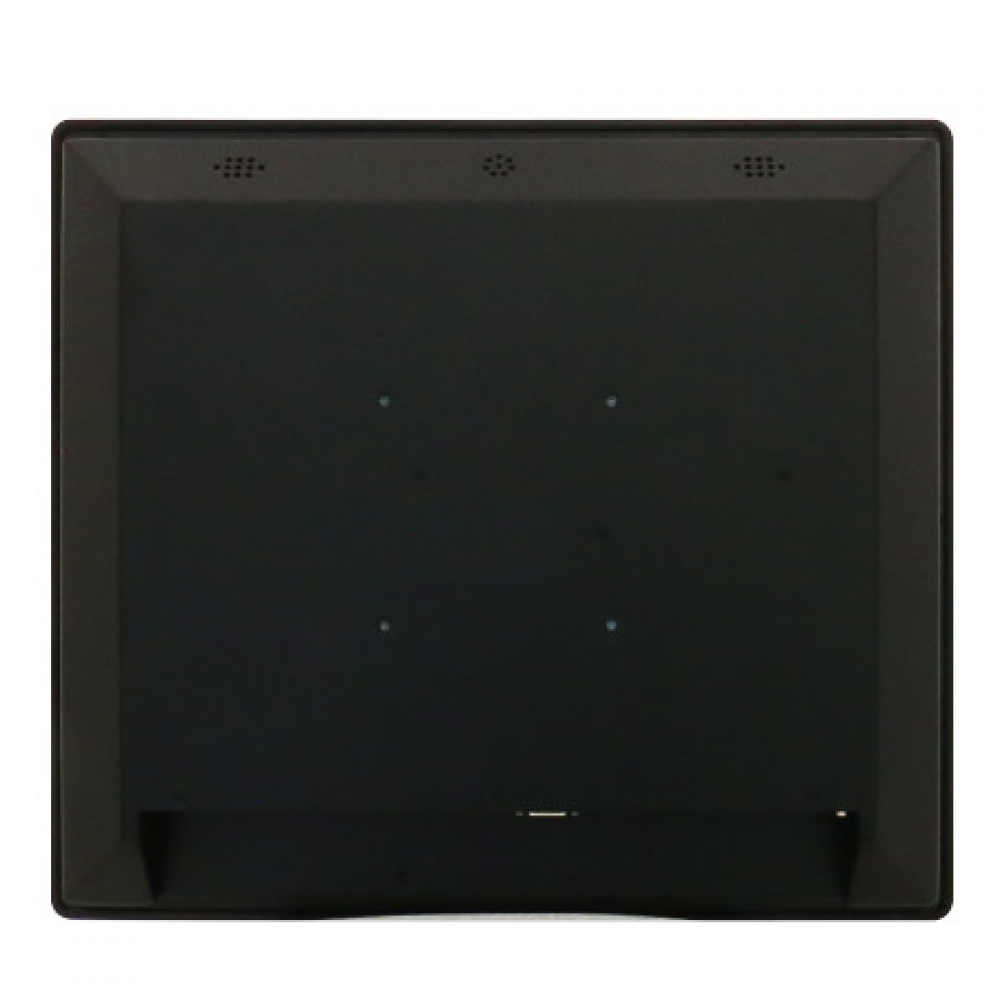

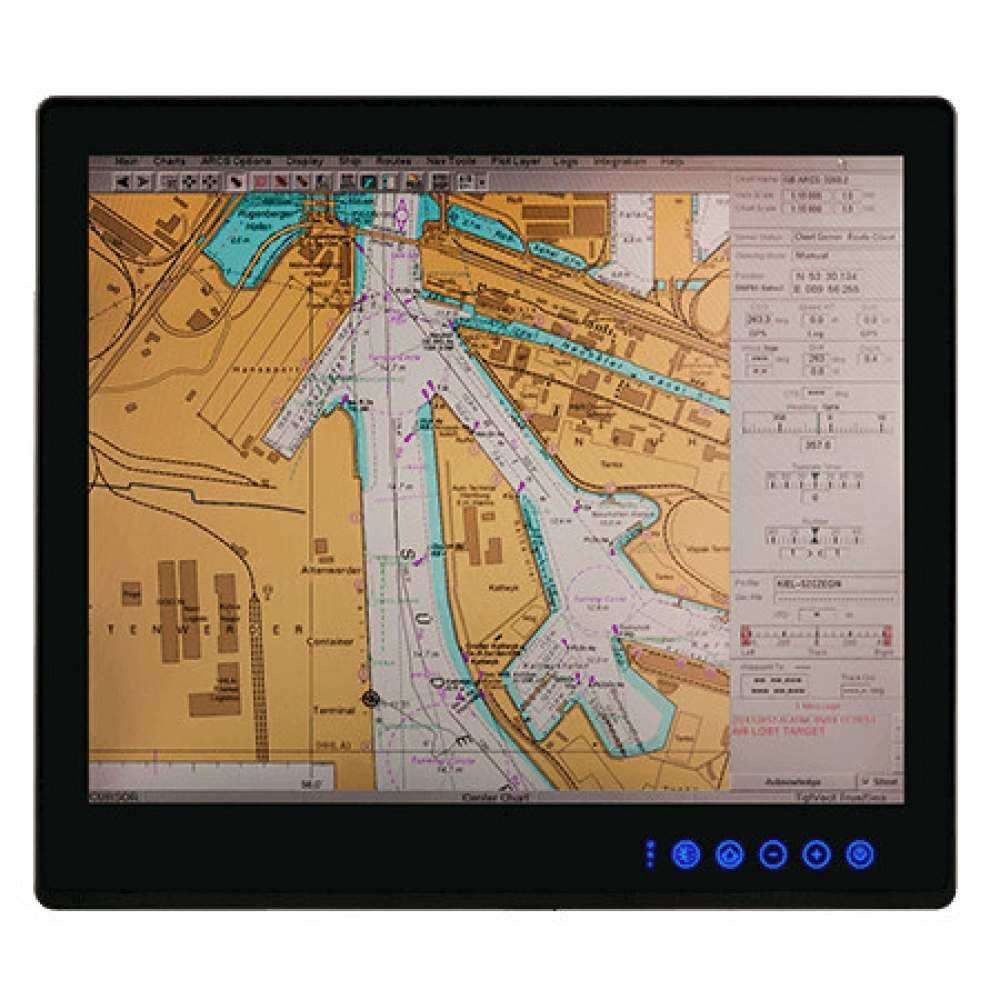

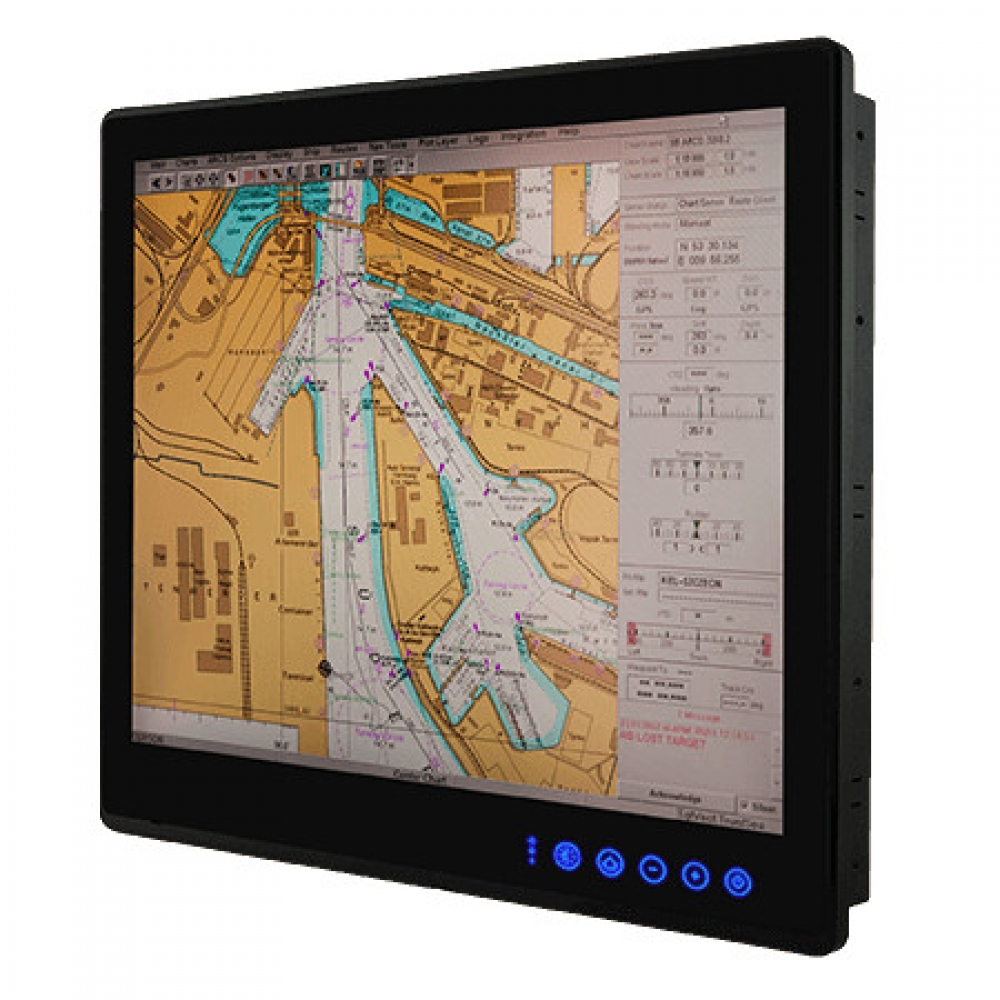

Winmate R19IH3S-MRA1FP

19" Intel® Core™ i5-5350U Flat PCAP ECDIS Marine Panel PC

19” 1280 x 1024 resolution with projective capacitive multi-touch screen
Edge-to-edge narrow bezel design and fanless cooling system
Color calibrated for ECDIS compliance (Optional)
Capacitive touch keys for quick function access and display control (Support ECDIS DAY, DUSK, and NIGHT mode switching)
Optional 4 x COM port (NMEA 0183 protocol) 422/485 switchable via software
Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10
Support capacitive touch key lock / touchscreen lock function

Industria / Sistemas
Transporte

AC
DC
Sin ventilación
HDMI
Intel
Interfaz
IP6X
IPX6
LAN
Serie
SSD
USB
Windows

Specifications

Display

Size

19.0 inches

Touch / Glass

Projected Capacitive Multi Touch Screen (AR Coating) AG film (Optional) AR Glass (Optional)

Resolution

1280x1024

Panel Brightness

400.0 nits

Contrast Ratio

1000:1

View Angles

85,85,80,80

Active Area

376.32x301.06 mm

System Specification

Processor

Intel Core i5-5350U Processor 1.8GHz (up to 2.9GHz) Intel Core i5-5250U Processor 1.6GHz (up to 2.7GHz) (Optional) Intel Core i5-5300U Processor 2.3GHz (up to 2.9GHz) (Optional) Intel Core i5-5200U Processor 2.2GHz (up to 2.7GHz) (Optional)

Memory

1 x SO-DIMM, DDR3L 1600 MHz, 4GB 8GB (Optional)

Storage

1 x mSATA SSD 128GB mSATA SSD up to 512GB (Optional)

Ethernet controller

Intel® Ethernet Controller I211-AT+ Intel® Ethernet Connection I218-LM

Operating System

Windows 11 IoT Enterprise LTSC (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional)

Buzzer

75 dB~80 dB, 2300 Hz, 1m

Environment

Operating Humidity

5% to 95%

Operating Temperature

-15~55°C

Shock

15G,11ms duration

Vibration

0.7g@DNVGL CG-0339 (Class A)

IP rating

IP66 (Front Side)

Certification

CE, FCC DNVGL-CG-0339, IEC60945 4th, IACS E10

IO Ports

USB Port

2 x USB3.0 1 x USB2.0

Serial Port

1 x RS232(Default)/422/485

LAN

2 x RJ45

Video

1 x HDMI (Optional)

Front Control

Power Brightness + Brightness - Menu Function Key(Default setting: ECDIS Mode)

Indicator

Day Mode Dusk Mode Night Mode

DIDO

8 Channel Isolated Digital Input/Output (Optional)

NMEA

4 x NMEA 0183 Port (Optional)

Mechanical

Dimension

429 x 382 x 72.8 mm

Cut out

408 x 359 mm

Weight

7.8 kg

Mounting

VESA Mount/ Panel Mount

Enclosure

Anodized Aluminum Bezel

Cooling System

Fanless Design

Accessory

Driver CD & User Manual 12V AC to DC Adapter (with 3 pin Terminal Block) Power Cord M4 x 12 Black Screw Bolts

Optional Accessory

Four 5 Pin Terminal Block 3.81 (Phoenix Type)*For NMEA port (Optional)

Power

Power Rating

24V DC-in with Isolation (Approval by Certificate) 9~36V DC Input Acceptable

Consumption

65W (Typical)
